PowerLift PL-XM Modular System
With an innovative reconfigurable design, the PowerLift makes reaching difficult places easy and safe for schools, churches, auditoriums, theaters, offices, and more.
Instant Access

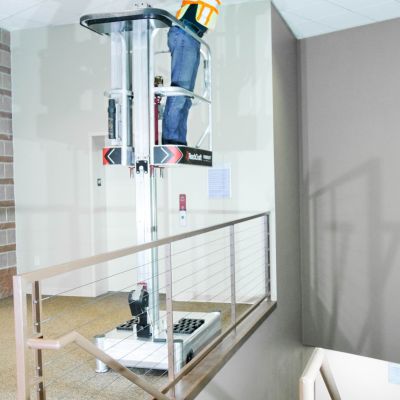

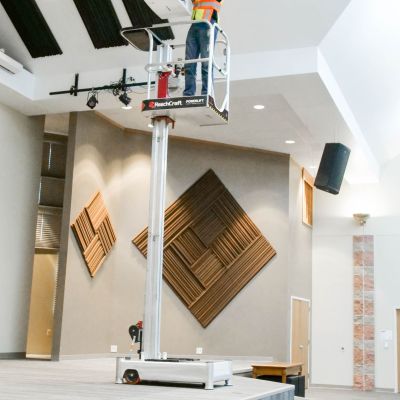

The compact base is easy to maneuver and automatically stabilizes when the platform is raised.
Highly Versatile
The straddle base is a versatile option for variety of jobs. Working over obstacles like stadium seats or church pews is easy.
Small Footprint
The stable fixed base has an incredibly small footprint. Perfect for working in tight areas where typical lifts cannot be set up.
Note: For indoor use only. The PL-X complies with ANSI and OSHA safety standards.
Go Where Others Can’t
Finally: a practical lift for tight spaces.
Practical
1
- 350 lb (159 kg) platform capacity with four base options to fit your needs and budget
- Stable at all heights up to maximum 24 ft (7.32 m) platform height
- Complies with ANSI standards and OSHA regulations
Smart Design
1
- Powered by electric drill
- Masts stow and stack for quick extension
- Equipped with height control
- Several base styles to accommodate unique work surfaces and spaces
Portable
1
- Fits through standard doors
- Rolls across most indoor terrain
- One person can carry up stairs when disassembled
Go Where Others Can’t
Finally: a practical lift for tight spaces.
Practical
1
- 350 lb (159 kg) platform capacity with four base options to fit your needs and budget
- Stable at all heights up to maximum 24 ft (7.32 m) platform height
- Complies with ANSI standards and OSHA regulations
Smart Design
1
- Powered by electric drill
- Masts stow and stack for quick extension
- Equipped with height control
- Several base styles to accommodate unique work surfaces and spaces
Portable
1
- Fits through standard doors
- Rolls across most indoor terrain
- One person can carry up stairs when disassembled
PowerLift PL-XM

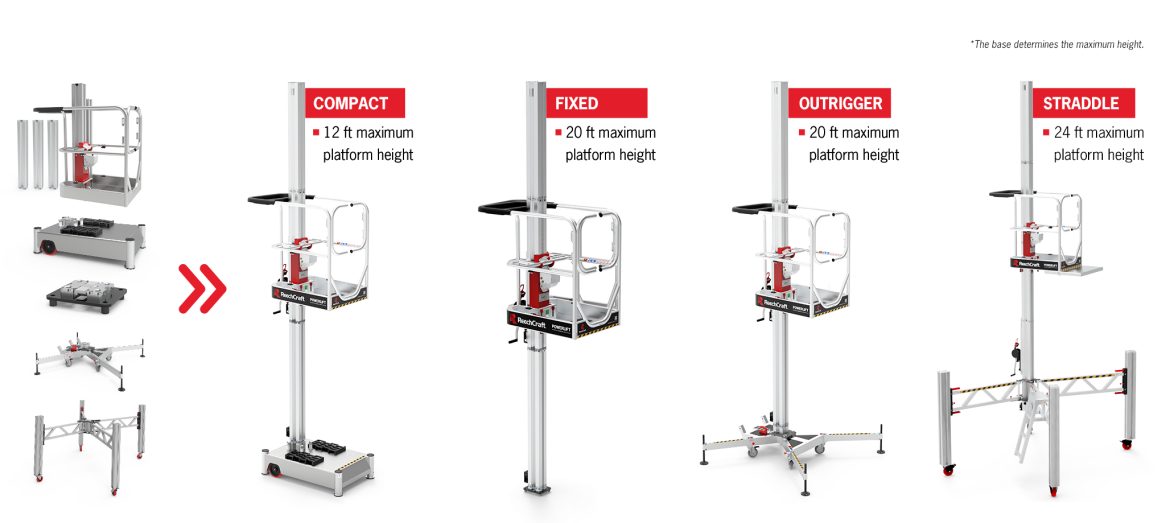

Six Components = Multiple Configurations
Compact Base | Fixed Base | Outrigger Base | Straddle Base | |
|---|---|---|---|---|
| Platform Capacity | 350 lbs (159 kg) | 350 lbs (159 kg) | 350 lbs (159 kg) | 350 lbs (159 kg) |
| Power Source | AC or DC Drill | AC or DC Drill | AC or DC Drill | AC or DC Drill |
| Drive | Gear Drive with Integrated Brake | Gear Drive with Integrated Brake | Gear Drive with Integrated Brake | Gear Drive with Integrated Brake |
| Maximum Manual Force | 45 lbs (200 N) | 45 lbs (200 N) | 45 lbs (200 N) | 45 lbs (200 N) |
| Maximum Wind Speed | 0 mph (0 m/s) (For Indoor Use Only) | 0 mph (0 m/s) (For Indoor Use Only) | 0 mph (0 m/s) (For Indoor Use Only) | 0 mph (0 m/s) (For Indoor Use Only) |
| Maximum Chassis Inclination | 0 Degrees | 0 Degrees | 0 Degrees | 0 Degrees |
| Platform Size (L x W) | 23.3 in. (592 mm) x 24.8 in. (630 mm) | 23.3 in. (592 mm) x 24.8 in. (630 mm) | 23.3 in. (592 mm) x 24.8 in. (630 mm) | 23.3 in. (592 mm) x 24.8 in. (630 mm) |
| Swivel/Lockable caster Diameter | 8 in. (203 mm) | N/A | 5 in. (127 mm) | 6 in. (152 mm) |
| Machine Weight | 742 lbs (337 kg) | 350 lbs (159 kg) | 547 lbs (248 kg) | 520 lbs (236 kg) |
Base Configuration Specifications
Compact Base | Fixed Base | Outrigger Base | Straddle Base | |
|---|---|---|---|---|
| A Stowed Length | 57 in. (1448 mm) | 51.5 in. (1308 mm) | 51.5 in. (1308 mm) | 36 in. (914 mm) |
| B Stowed Width | 30 in. (762 mm) | 28.5 in. (724 mm) | 30 in. (762 mm) | 30 in. (762 mm) |
| C Stowed Height | 72.5 in. (1842 mm) | 63.5 in. (1613 mm) | 74 in. (1880 mm) | N/A |
| D Minimum Platform Height | 16.5 in. (419 mm) | 6 in. (152 mm) | 13.5 in. (343 mm) | N/A |
| E Ground Footprint Width | 30 in. (762 mm) | N/A | 67.2 in. (1707 mm) | 86-106 in. (2184-2692 mm) |
| F Ground Footprint Length | 47 in. (1194 mm) | N/A | 64.7 in. (1643 mm) | 81.5-104 in. (2070-2642 mm) |
| G Distance from Wall Side | 1.5 in. (38 mm) | N/A | 20 in. (508 mm) | 28-38 in. (711-965 mm) |
| H Distance from Wall Front | 5.5 in. (140 mm) | N/A | 10 in. (254 mm) | 20-29 in. (508-737 mm) |
| I Erected Mast Height | 168 in. (4267 mm) | 255 in. (6477 mm) | 265 in. (6731 mm) | 314 in. (7975 mm) |
| J Maximum Platform Height | 145.2 in. (3688 mm) | 232.8 in. (5913 mm) | 242.4 in. (6157 mm) | 288 in. (7320 mm) |
| K Maximum Leg Offset | N/A | N/A | N/A | 25-63 in. (635-1600 mm) |
| L Maximum Straddle Height | N/A | N/A | N/A | 48 in. (1220 mm) |
| M Maximum Extended Height | 190 in. (4826 mm) | 287 in. (7290 mm) | 277 in. (7036 mm) | 336 in. (8534 mm) |
| N Maximum Working Height | 217.2 in (5517 mm)* | 304.8 in. (7742 mm)* | 314.4 in. (7986 mm)* | 360 in. (9140 mm)* |
*Based on 6 ft (2m) above platform height.
Note: Specifications subject to change without notice.
Mechanics That Make Sense
The ReechCraft PowerLift includes a wide variety of components and accessories that provide added benefits based on what each user needs. All of the components can be carried up slopes or stairs, so you can easily work in auditoriums, theaters, churches, and more.

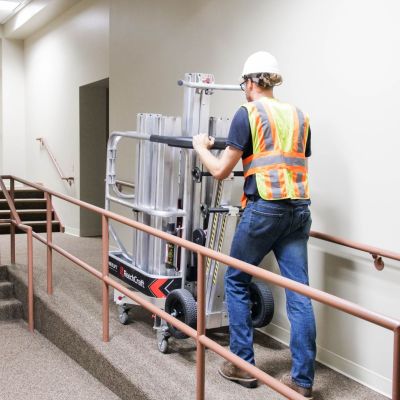

Easily Carried
The most portable lift on the market! Components can be disassembled to make the PowerLift easy to move and carry.
Overspeed Brake
The gearbox includes an integrated overspeed brake. This provides safety by automatically stopping the platform in the event of overspeed.
Ergonomic Platform
The PowerLift platform features ergonomic front entry gates that swing open and a large, easily accessible tool tray.
Hitch Hauler
Load, secure, and transport the PowerLift with outrigger base in a matter of seconds using a vehicle’s two-inch receiver and Hitch Hauler.
PowerLift PL-XM Modular System
Components + Accessories

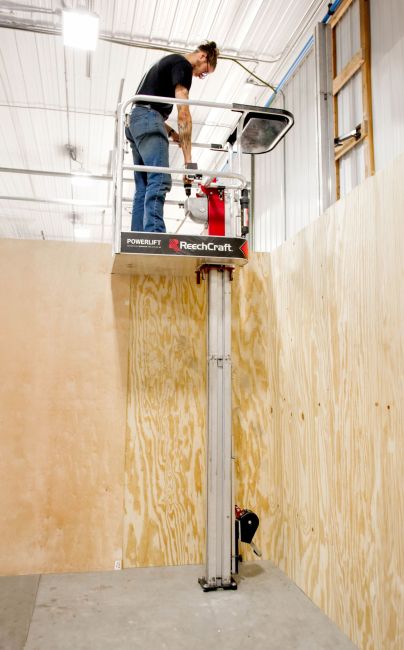

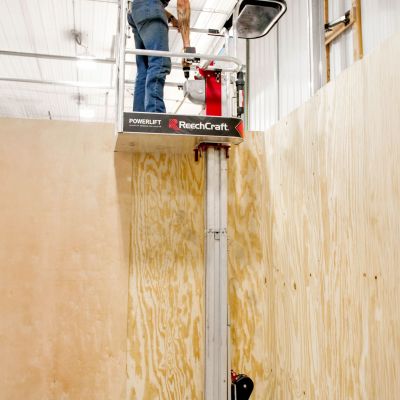

The fixed base option can be temporarily or permanently attached to a concrete floor or other structure to provide a base for the PowerLift PL-XM lift (4027900). This base has a maximum platform height of 12 feet (3.66 m).
Product Dimensions: 9.4 in. (239 mm) x 7.8 in. (198 mm) x 5.5 in. (140 mm)
Shipping Dimensions: 11 in. (279 mm) x 11 in. (279 mm) x 6 in. (152 mm)
Shipping Weight: 12 lbs (5 kg)
The compact base option allows for instant access in tight spaces. The base automatically engages and rests on the ground when the platform is raised to keep you stable. It is great for use in residential and commercial settings, such as gyms, churches, and schools. This base has a maximum platform height of 12 feet (3.66 m). For use with the PowerLift PL-XM lift (4027900).
Product Dimensions: 48 in. (1219 mm) x 30 in. (762 mm) x 15 in. (381 mm)
Shipping Dimensions: 48 in. (1219 mm) x 36 in. (914 mm) x 15 in. (381 mm)
Shipping Weight: 650 lbs (295 kg)

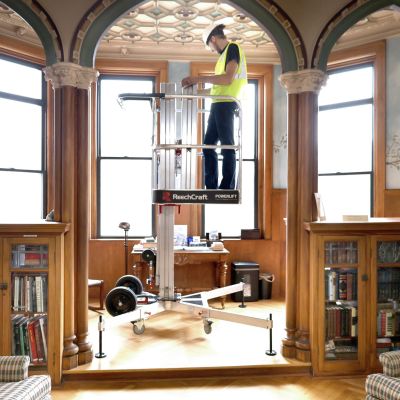

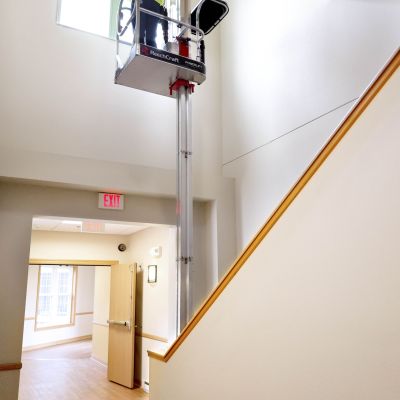

The outrigger base option allows you to use the PowerLift PL-XM on uneven surfaces. The non-marking caster wheels are great for use in residential and commercial settings, such as gyms, churches, and schools. This base has a maximum platform height of 20 feet (6.10 m). For use with the PowerLift PL-XM lift (4027900).
Product Dimensions: 67 in. (1702 mm) x 64 in. (1626 mm) x 15 in. (381 mm)
Shipping Dimensions: 54 in. (1372 mm) x 36 in. (914 mm) x 16 in. (406 mm)
Shipping Weight: 300 lbs (136 kg)

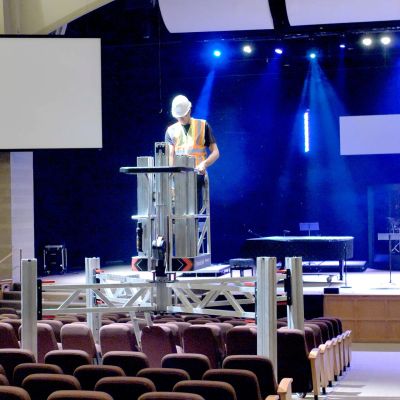

The straddle base option allows you access over obstacles such as pews or desks. Additionally, the legs are independently adjustable for use on stairs or slanted floors as in an auditorium or theater setting. With the straddle base option, the PowerLift PL-XM has a maximum platform height of 24 feet (7.32 m). For use with the PowerLift PL-XM lift (4027900).
Product Dimensions: 75-91.5 in. (1905-2324 mm) x 72-90 in. (1829-2286 mm) x 65 in. (1651 mm)
Shipping Dimensions: 65 in. (1651 mm) x 42 in. (1067 mm) x 24 in. (610 mm)
Shipping Weight: 308 lbs (140 kg)
The PowerLift PL-XM straddle base leg extension allows for additional adjustment on two sides of the straddle base. Includes two extensions.
Product Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 24 in. (610 mm)
Shipping Dimensions: 13 in. (330 mm) x 6 in. (152 mm) x 24 in. (610 mm)
Shipping Weight: 30 lbs (14 kg)
The PowerLift PL-XM lift (4027900) comes with high-strength aluminum alloy masts to give you approximately 8 feet (2.44 m) of lift. Add up to three additional 4-foot (1.22 m) masts for a maximum of 20 feet (6.10 m) of lift! These masts include a proprietary height control feature, automatic over-top stop, and quick, tools-free connection to ensure efficiency and safety while stacking masts. Each mast has a redundant locking feature that requires the mast connections to be locked in place before raising the climbing unit. Note: Height control is only available on the PL-XM model.
Product Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 50 in. (1270 mm)
Shipping Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 50 in. (1270 mm)
Shipping Weight: 29 lbs (13 kg)
The PowerLift PL-XM platform transport wheel kit option attaches to the PowerLift PL-XM platform and allows the baseless PowerLift PL-XM (4027900) to be neatly stowed and more easily transferred to the work location.
Product Dimensions: 34.5 in. (876 mm) x 6.3 in. (159 mm) x 6.5 in. (165 mm)
Shipping Dimensions: 36 in. (914 mm) x 8.5 in. (216 mm) x 8.5 in. (216 mm)
Shipping Weight: 18 lbs (8 kg)
The transport handle and wheel kit can be attached to the PowerLift PL-X16, PL-X20, and PL-XM with the outrigger base option. This will allow the lift to be maneuvered over uneven surfaces with ease. It is great for transporting from jobsite to jobsite. Note: The transport handle and wheel kit is required for use with our Hitch Hauler (4026236).
Wheel Dimensions: 4 in. (102 mm) x 12 in. (305 mm) x 12 in. (305 mm)
Handle Dimensions: 21.5 in. (546 mm) x 8 in. (203 mm) x 5.5 in. (140 mm)
Shipping Dimensions: 24 in. (610 mm) x 16 in. (406 mm) x 6 in. (152 mm)
Shipping Weight: 12 lbs (5 kg)
The convenient Hitch Hauler eliminates the need for a truck or trailer to transport the PowerLift PL-X16, PL-X20, and PL-XM with an outrigger base. This option allows any vehicle with a type II receiver hitch to transport the PowerLift in town or on the highway. Loads, unloads, and secures in under 15 seconds. No ropes, chains, or straps required. Note: The transport handle and wheel kit (4027519) is required for use with the Hitch Hauler.
Product Dimensions: 38 in. (965 mm) x 21 in. (533 mm) x 12 in. (305 mm)
Shipping Dimensions: 28.5 in. (724 mm) x 22.3 in. (565 mm) x 13.5 in. (343 mm)
Shipping Weight: 50 lbs (23 kg)
The PowerLift crane hook kit provides safe and convenient boom truck loading and fits all the PowerLift models.
Product Dimensions: 4 in. (102 mm) x 0.1 in. (3 mm) x 8.5 in. (216 mm)/div>
Shipping Dimensions: 4 in. (102 mm) x 0.1 in. (3 mm) x 8.6 in. (219 mm)
Shipping Weight: 1 lb (0.5 kg)
See the PowerLift in Action
Manuals & Literature
Product Manuals & Literature are available below both online and in downloadable PDF format.
The Powerlift PL-XM Modular System literature is available for download.
The PowerLift PL-X Operator’s Safety Manual is available for download.
