PowerLift PL-X Outrigger Base

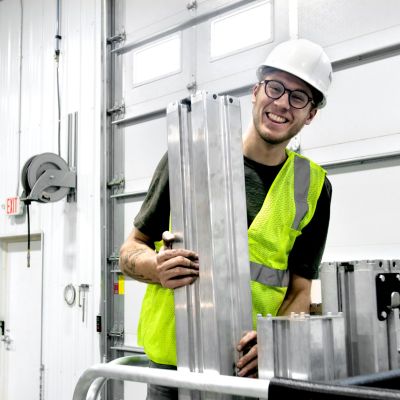

Setup

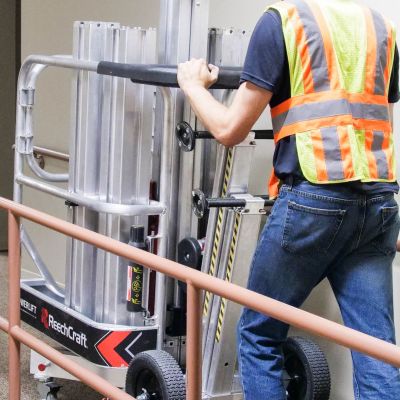

Transport

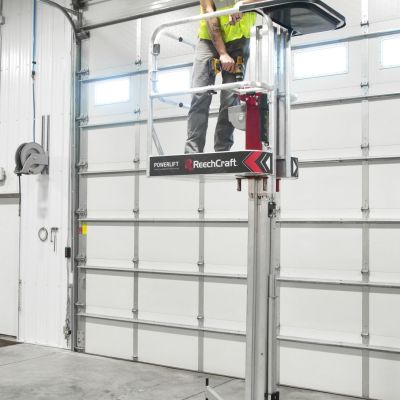

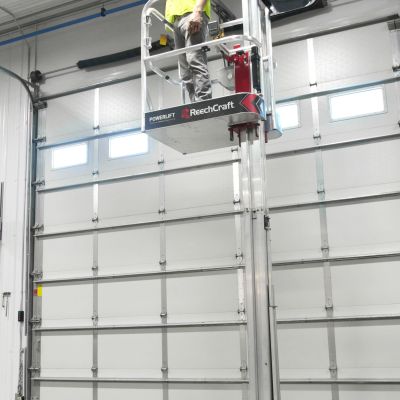

Operation
Note: For indoor use only. The PL-X complies with ANSI and OSHA safety standards.
Go Where Others Can’t
Practical
- Complies with ANSI standards and OSHA regulations
- Stable at all heights up to maximum 20 ft (6.10 m) platform height
- 350 lb (159 kg) platform capacity
Smart Design
- Powered by electric drill
- Masts stow and stack for quick extension
- Legs adjust to accommodate work surface
- Ergonomic platform design with large tool tray
Portable

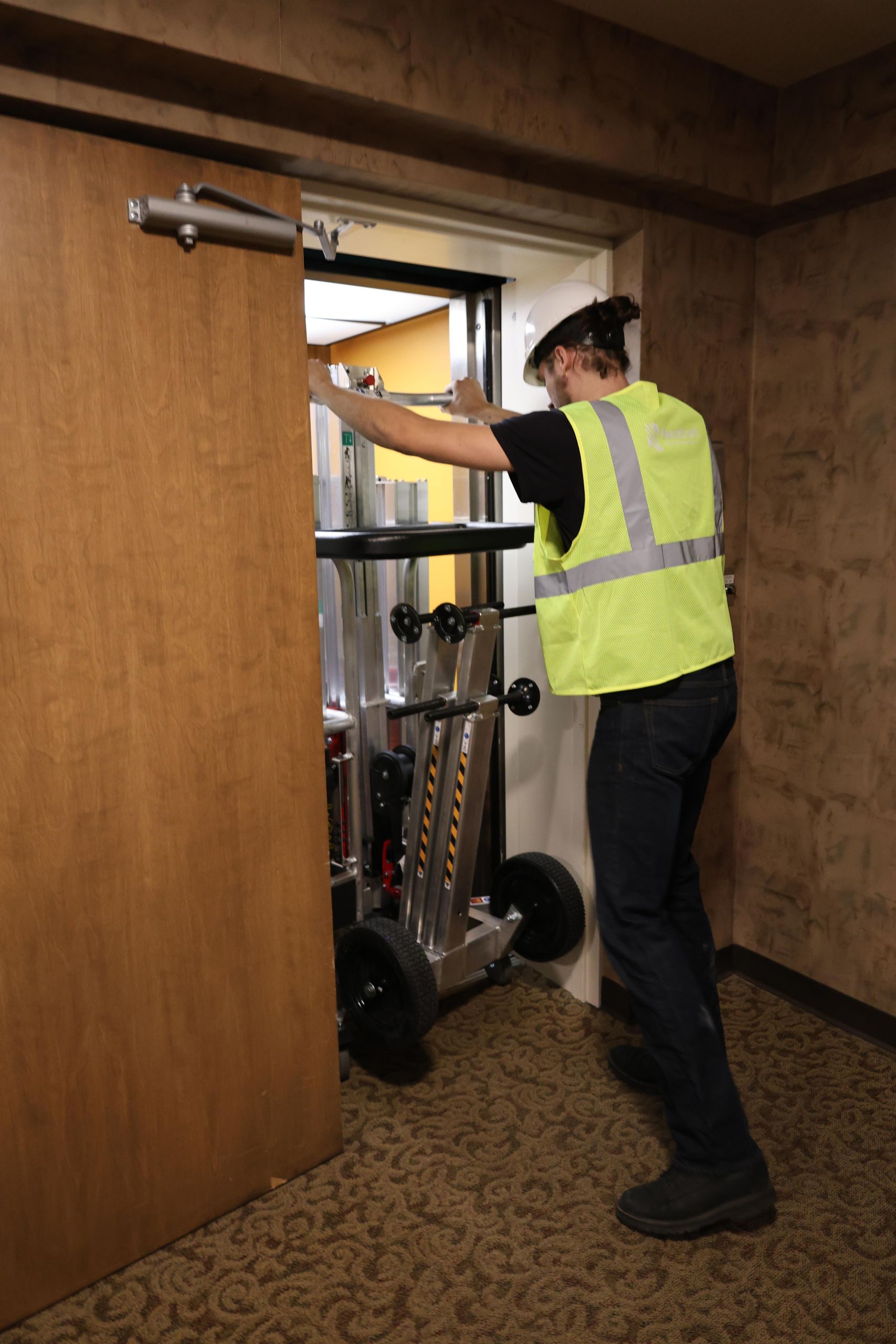

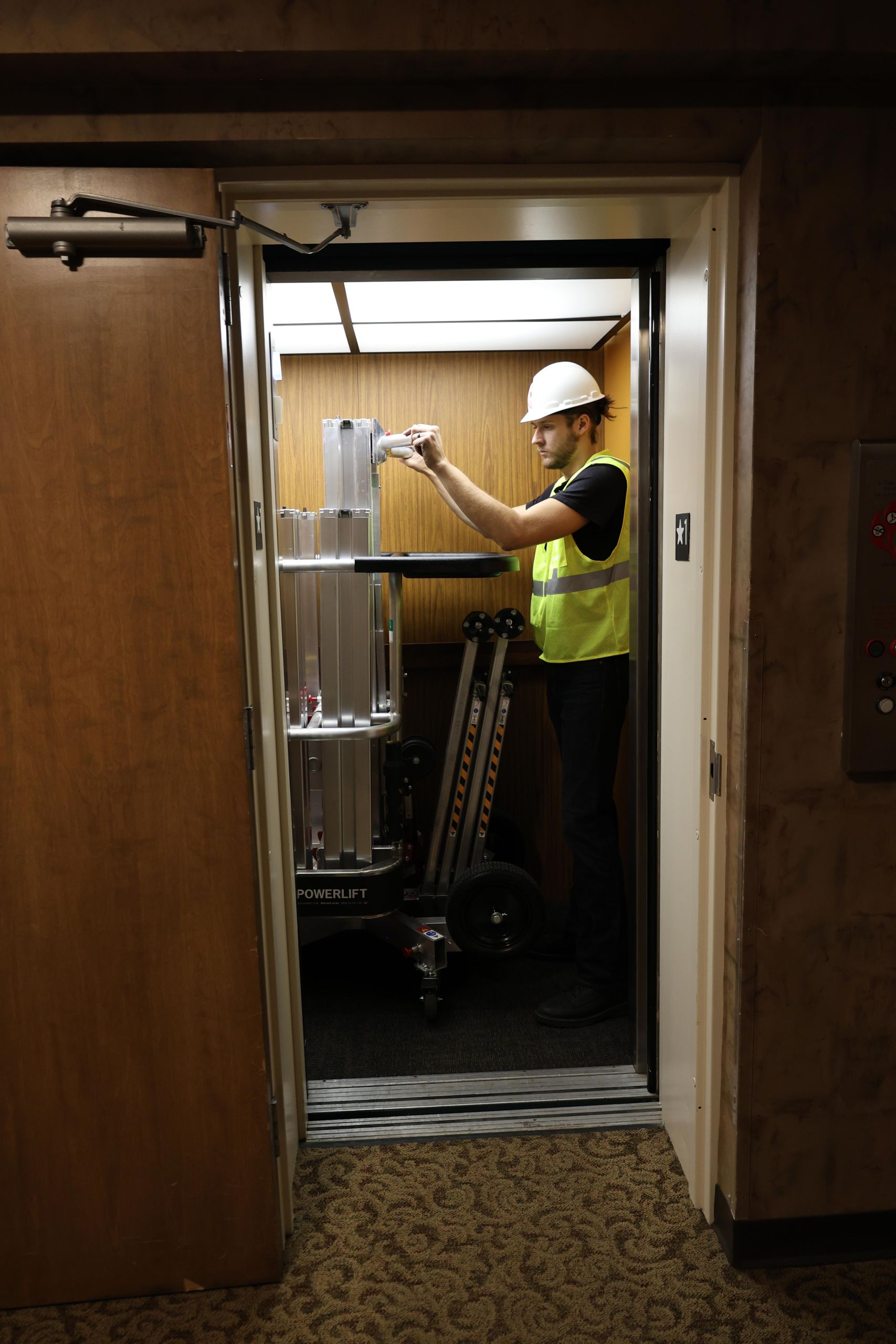

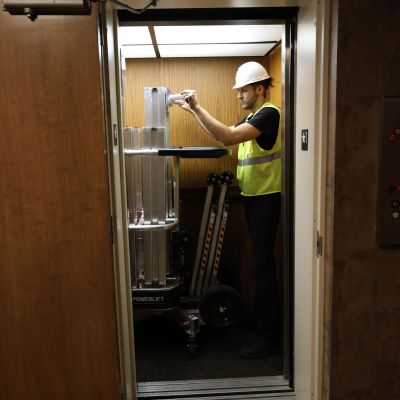

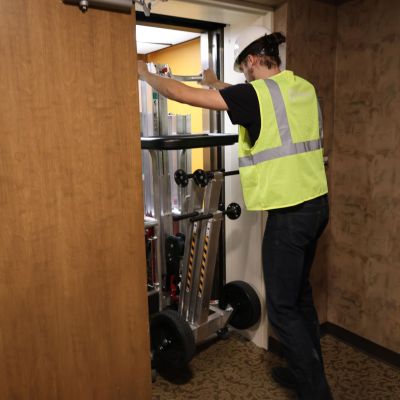

- Fits through standard doors
- Rolls across any terrain
- Zero-turn radius

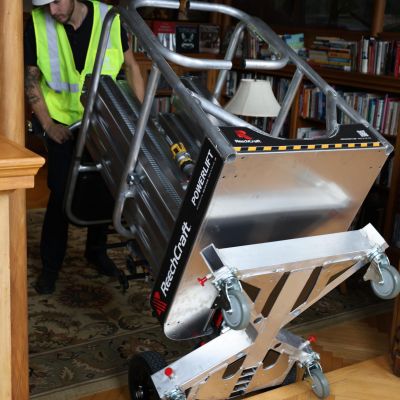

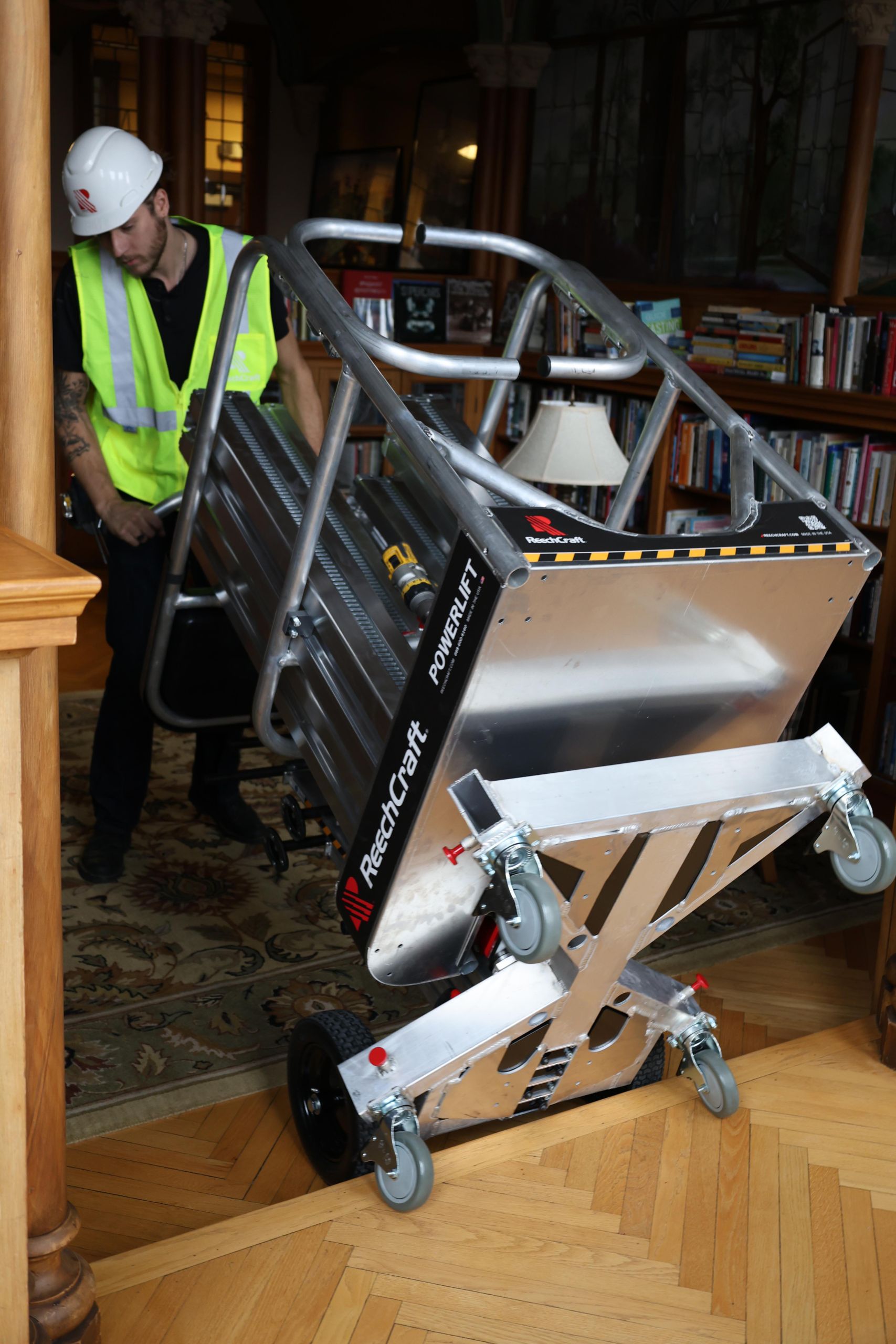

- One person can carry up stairs when disassembled
PowerLift PL-X
Outrigger Base Specifications
PL-X16 | PL-X20 | |
|---|---|---|
| Platform Capacity | 350 lbs (159 kg) | 350 lbs (159 kg) |
| Power Source | AC or DC Drill | AC or DC Drill |
| Drive | Gear Drive with Integrated Brake | Gear Drive with Integrated Brake |
| Maximum Manual Force | 45 lbs (200 N) | 45 lbs (200 N) |
| Maximum Wind Speed | 0 mph (0 m/s) (For Indoor Use Only) | 0 mph (0 m/s) (For Indoor Use Only) |
| Maximum Chassis Inclination | 0 Degrees | 0 Degrees |
| Platform Size (L x W) | 23.3 in. (592 mm) x 24.8 in. (630 mm) | 23.3 in. (592 mm) x 24.8 in. (630 mm) |
| Swivel/Lockable Caster Diameter | 5 in. (127 mm) | 5 in. (127 mm) |
| Machine Weight | 394 lbs (179 kg) | 518 lbs (235 kg) |
| A Stowed Length | 51.5 in. (1308 mm) | 51.5 in. (1308 mm) |
| B Stowed Width | 30 in. (762 mm) | 30 in. (762 mm) |
| C Stowed Height | 69 in. (1753 mm) | 69 in. (1753 mm) |
| D Minimum Platform Height | 13.5 in. (343 mm) | 13.5 in. (343 mm) |
| E Ground Footprint Width | 67.2 in. (1707 mm) | 67.2 in. (1707 mm) |
| F Ground Footprint Length | 64.7 in. (1643 mm) | 64.7 in. (1643 mm) |
| G Distance from Wall Side | 20 in. (508 mm) | 20 in. (508 mm) |
| H Distance from Wall Front | 10 in. (254 mm) | 10 in. (254 mm) |
| I Erected Mast Height | 212 in. (5385 mm) | 260 in. (6604 mm) |
| J Maximum Platform Height | 189.6 in. (4816 mm) | 237.6 in. (6035 mm) |
| M Maximum Extended Height | 234 in. (5944 mm) | 282 in. (7163 mm) |
| N Maximum Working Height | 261.6 in. (6645 mm)* | 309.6 in. (7864 mm)* |
*Based on 6 ft (1.8 m) above platform height.
Note: Specifications subject to change without notice.
Mechanics That Make Sense
Ergonomic Platform

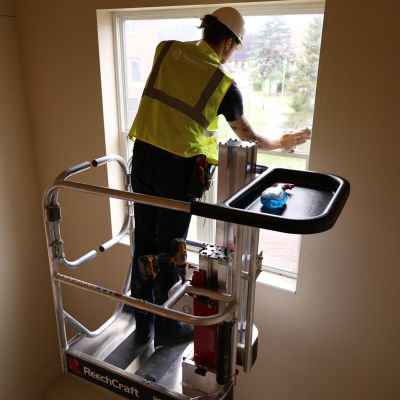

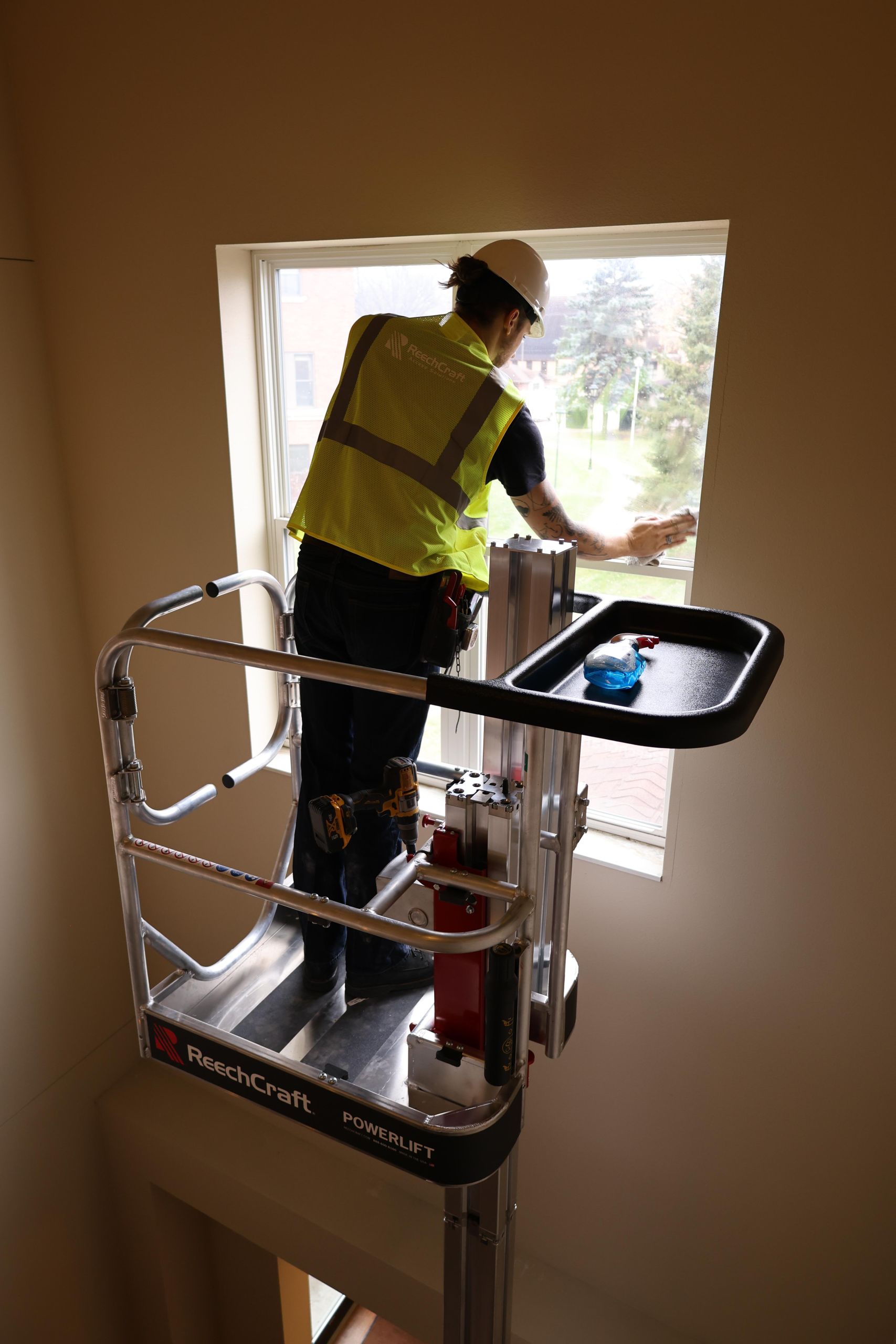

The PowerLift platform features front entrance gates, making it more ergonomic and easier to step in and get to work. It also features a large tool tray to allow you to carry all your supplies.
Overspeed Brake
The gearbox includes an integrated overspeed brake. This provides safety redundancy by automatically stopping the platform in the event of overspeed.
Easily Carried
The most portable lift on the market. The components can be quickly disassembled, making it easy to carry and move to the next location.
Caster Wheels

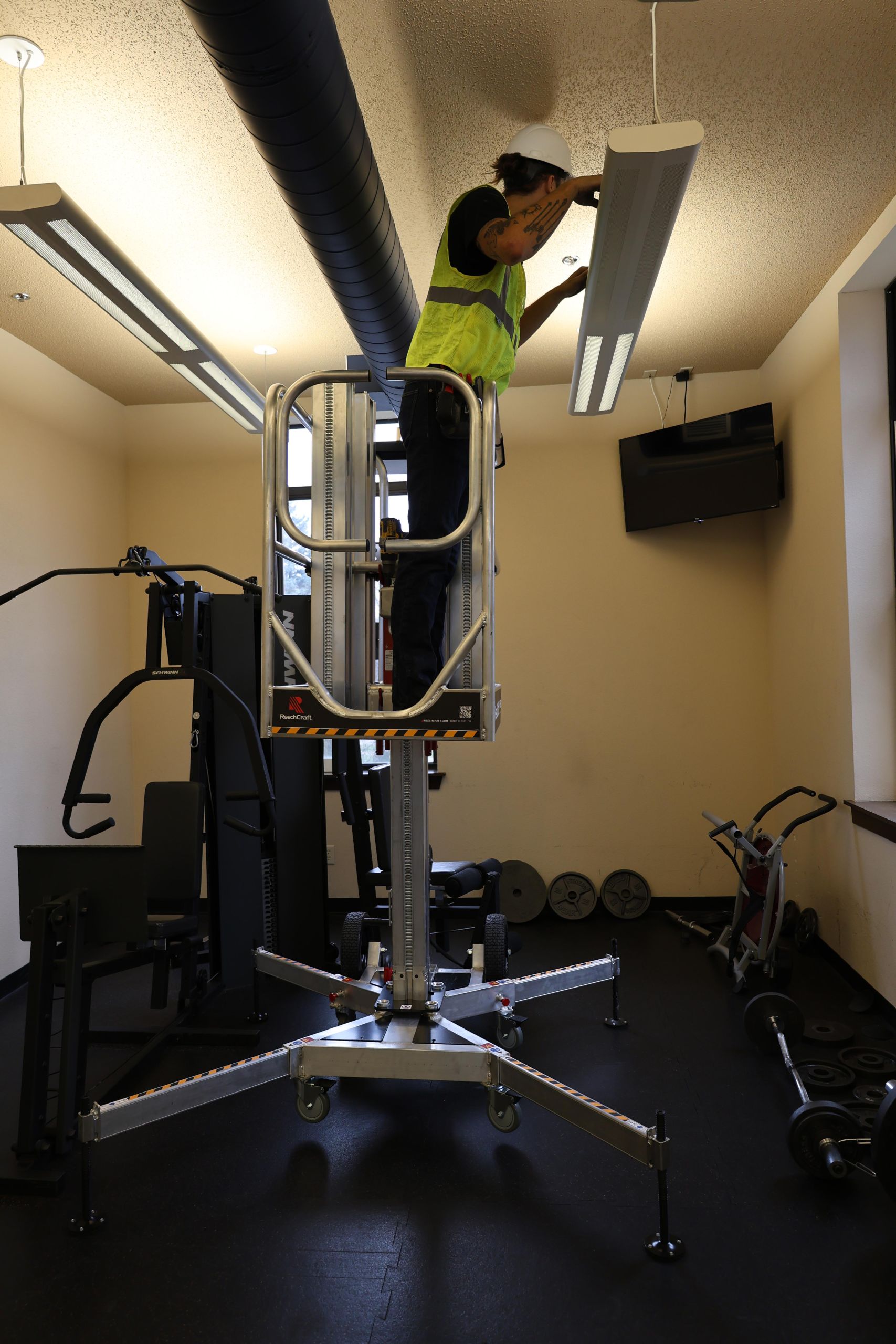

The base features four swiveling and lockable casters that allow the PowerLift to easily rotate 360 degrees to make any job accessible.
PowerLift PL-X Outrigger Base
Components + Accessories
See the PowerLift in Action
The Powerlift PL-X with outrigger base literature is available for download.
The PowerLift PL-X Operator’s Safety Manual is available for download.
