PowerMast Freestanding System

The PowerMast tri-mast and quad-mast freestanding systems provide easy access, fast setup, and unmatched portability for jobs up to 80 feet (24.38 m).

Smart Design

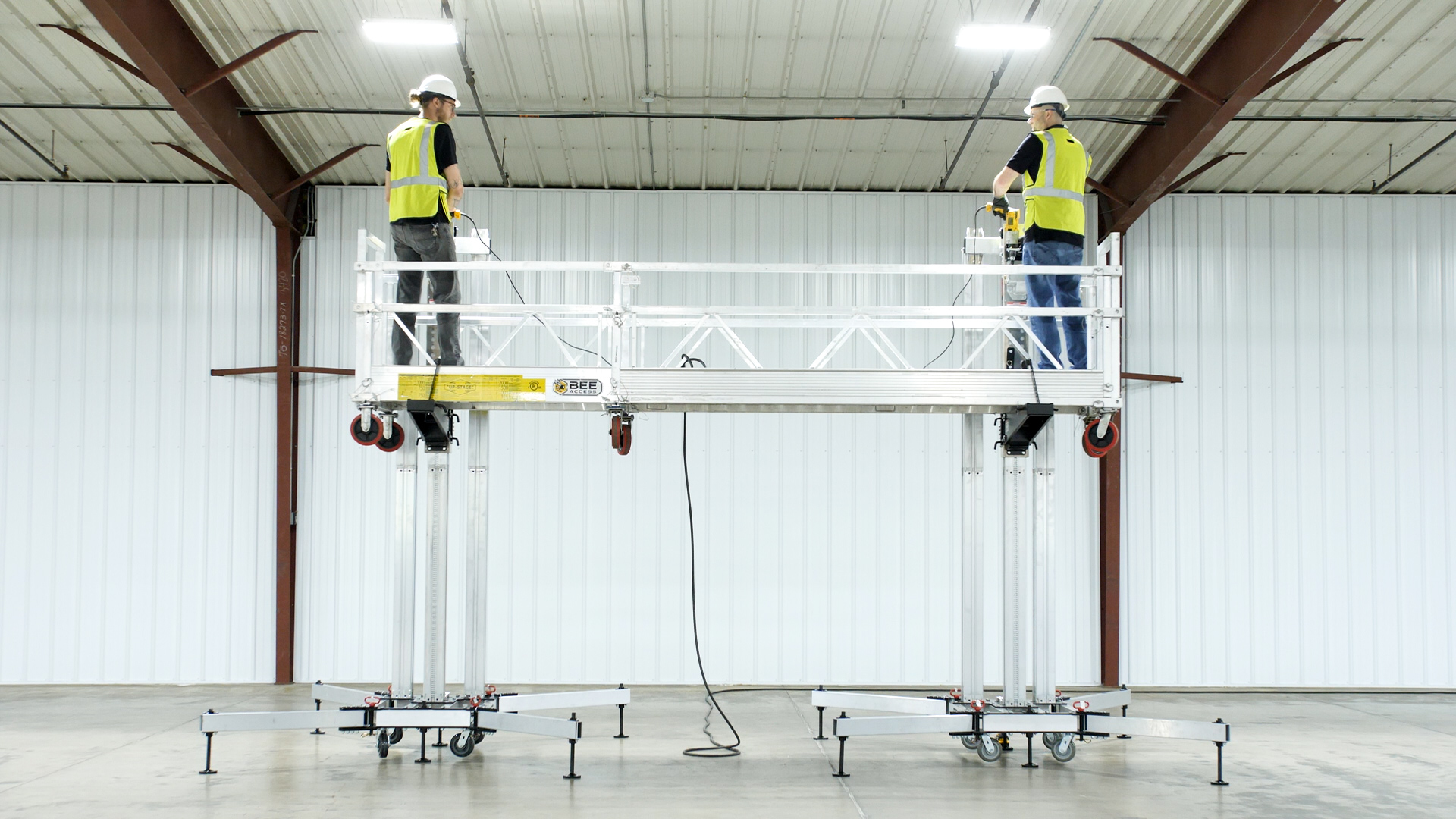

Powered by an electric drill, PowerMast freestanding systems can be used in either single or twin configurations. Its removable components ensure excellent portability.

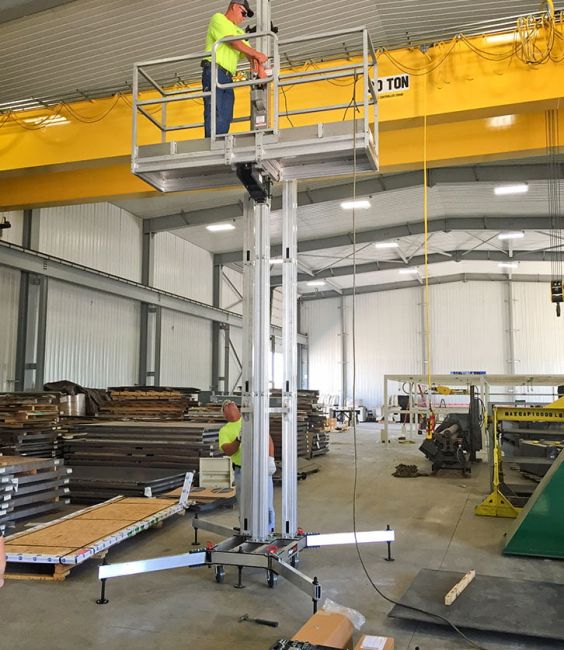

powermast-2

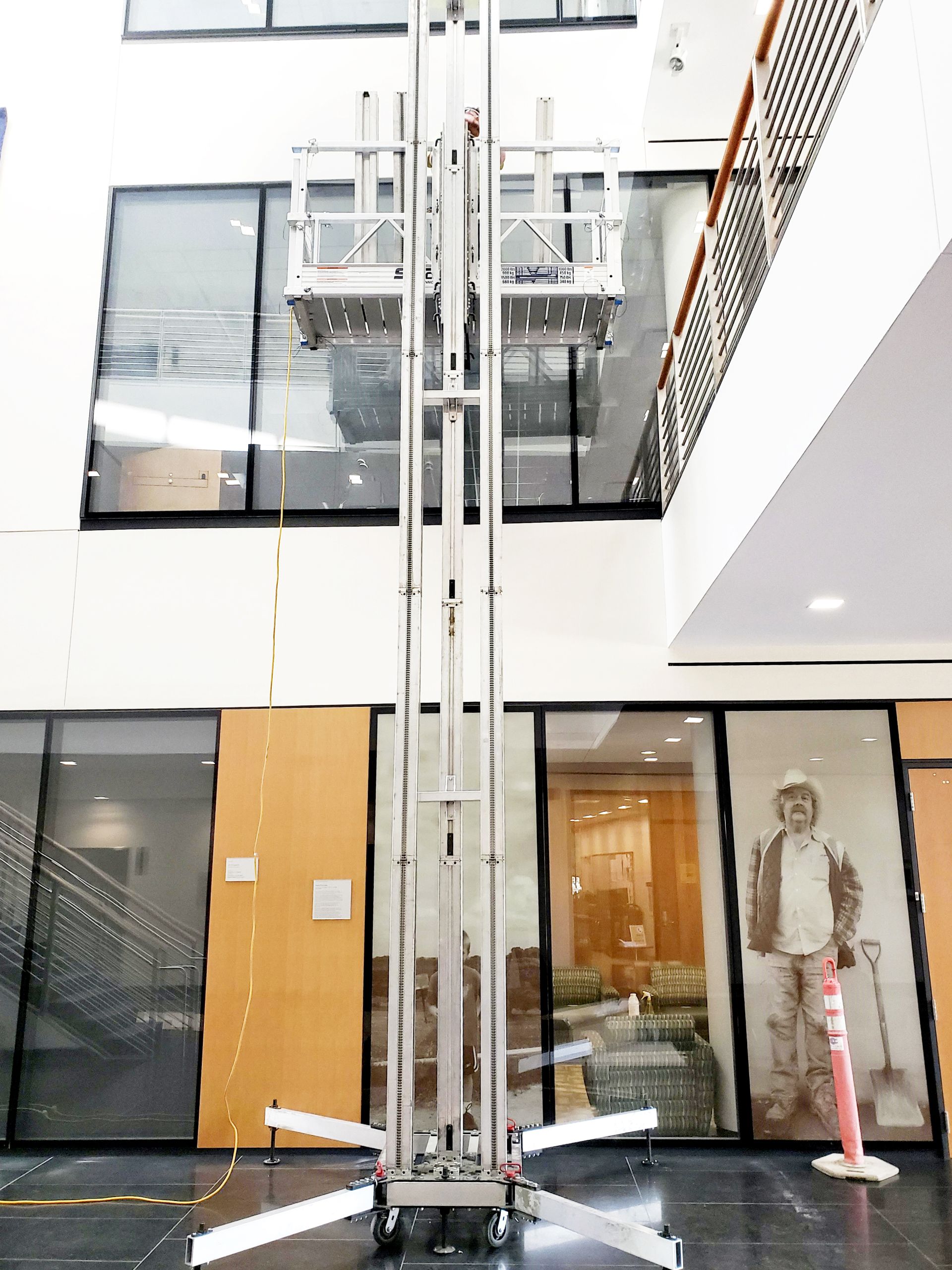

Tri-Mast Features

The freestanding tri-mast can be used with a single 6.5-foot (2 m) platform. The system allows working heights up to 52 feet (15.85 m) indoors and 33 feet (10.01 m) outdoors.

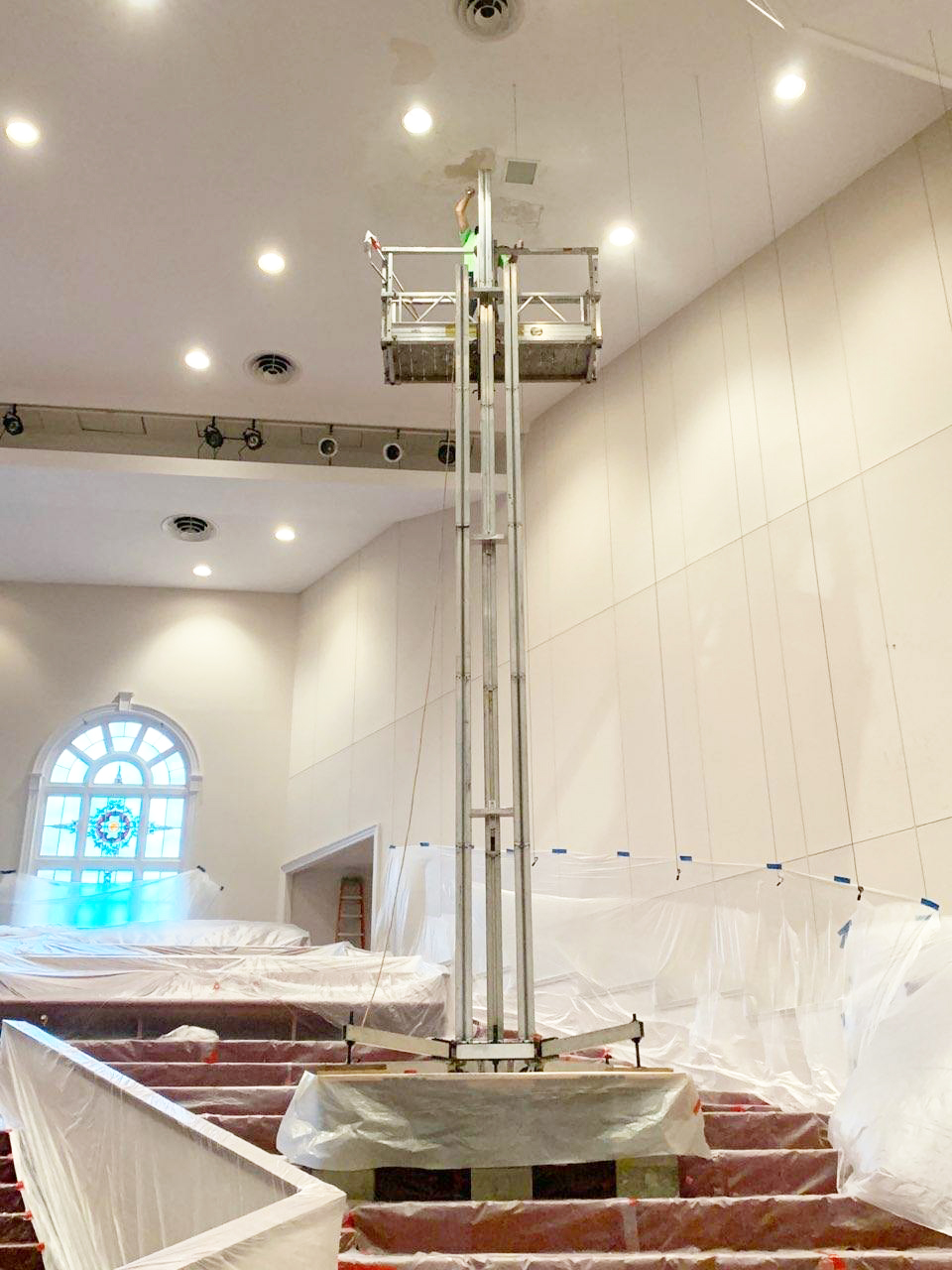

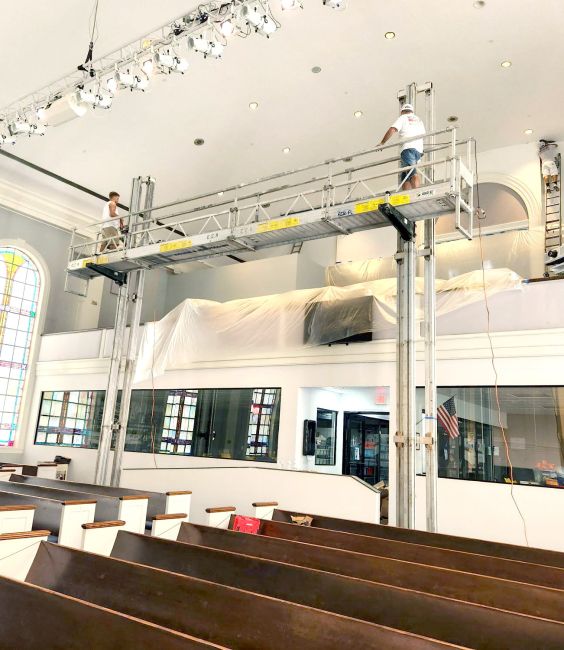

Tri-Mast in a Church 1_Edited

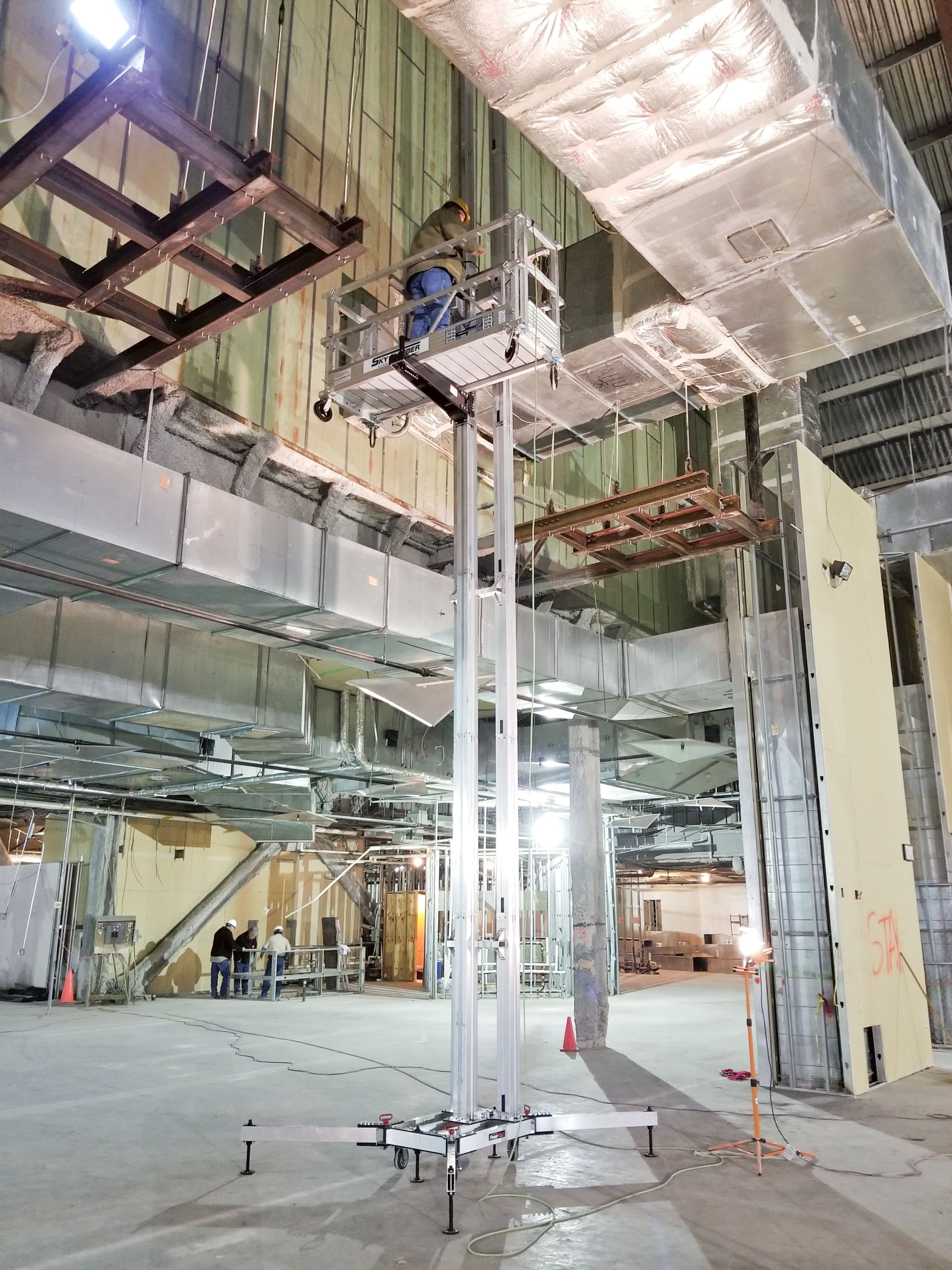

Quad-Mast Features

The PowerMast freestanding quad-mast is easy to move while assembled and requires no rigging. It fits through tight spaces and offers a working height up to 80 feet (24.38 m).

PowerMast_QuadMast_Indoors (web)

Flexible for What You Need

Efficient

1
  • 20-40 FPM mast climbing speed
  • Custom PowerMast mast climbers are available for unique applications
  • Height adjustable while in use
  • 1,500 lb weight capacity

Fast Setup, Fast Access

1
  • Set up in as little as 15 minutes
  • Erected from ground up, unlike swing stage
  • Powered by 1/2 in. 8 amp electric drill
  • Tools-free mast assembly

Easy Transport

1
  • PowerMast Mast Climber fits in back of truck and van
  • Stackable aluminum mast sections
  • Sturdy outrigger base with swiveling caster wheels

Tri-Mast Specifications

Description
Specification
Platform Support Dimensions (Twin)Up to 30 in. (762 mm) Wide Platform Deck
Minimum/Maximum Platform Length (Twin)Any within 1500 lb (680 kg) System Capacity
Platform Dimension (Single)2 ft (0.61 m) x 6.5 ft (1.98 m)
Maximum Height (Freestanding Indoor)46 ft (14.02 m) (Platform)
52 ft (15.85 m) (Working)
Maximum Height (Freestanding Outdoor)27 ft (8.23 m) (Platform)
33 ft (10.06 m) (Working)
Maximum Load Capacity (Twin)1500 lb (680 kg) (750 lb per Mast)
Maximum Tie Spacing10 ft (3.05 m)
Maximum Climbing Speed25 ft/min (7.6 m/min)
Drive System120:1 Clutch Protected Transmission
Operating System 0.5 in. (13 mm) 8 amp Minimum Drill Motor
Required Voltage 110 VAC Single Phase
Safety Devices Lock Lever, Overload Clutch, Overspeed Brake
Climbing Unit Weight 65 lbs (29 kg)
5 ft Mast Weight 32 lbs (16 kg)
32 in. Mast Weight 19 lbs (9 kg)
Tie Weight 12 lbs (5 kg)
Mast Section 5 in. (127 mm) x 6 in. (152 mm) Aluminum with Galvanized Steel Track
Mast Connection Type Interference Locking Cam
Base Dimension 106 in. (2692 mm) x 80 in. (2032 mm)

Note: Specifications subject to change without notice.

Mechanics That Make Sense

ReechCraft PowerMast includes a wide variety of components and accessories that provide added benefits based on what each user needs. The variation of PowerMast accessories and components helps it adapt to any project.

Climbing Unit

The climbing unit features a lock lever,  an overspeed brake, and a gearbox with an overload clutch. It is drill operated to eliminate typical electrical components.

Quick Connection

Our tools-free mast connection system saves time, allows for quick height adjustments while in use, and has a built-in over-top stop safety feature.

Versatile Base

The base uses the same tools-free quick connection as the masts and offers four connection locations for a single mast or tri-mast setup.

Caster Wheels

The base features four swiveling and lockable casters that allow the PowerMast to easily rotate 360 degrees to make any job accessible.

Sturdy Outriggers

The outriggers are equipped with fully adjustable stabilizers to provide a safe, stable base, even in areas with uneven or rough terrain.

Tri-Mast Tie

Quickly and easily tie masts together to stabilize the PowerMast tri-mast freestanding system.

Frequently Asked Questions

How much will the PowerMast lift?

The lifting capacity for each PowerMast climbing unit is 750 lbs per single mast or 1,500 lbs per twin system.

How high can the PowerMast go?

The maximum height of the freestanding PowerMast is 80 feet, and the wall-tied system is 200 feet.

What platforms can I use?

PowerMast is designed to accept most modular platforms and walkboards that are commonly in use.

Have the twin mast drills been synchronized so they go up and down at the same time?

Because we utilize less costly and easily replaceable drill motors for power, each climbing unit must be operated independently. However, since there are generally at least two workers on a twin system who can operate both ends at the same time, synchronization is rarely an issue.

What is the maximum space to have between two masts?

When the combined weight of the platform, people, and materials weighs 1,500 lbs or less, the maximum space can be as wide as the plank in use.

How much time is required to set PowerMast up?

From start to finish with two people, setup time ranges between 30 minutes up to 2 hours, depending on the configuration. This includes carrying, loading, and erecting the system components.

What fuels the PowerMast?

The PowerMast is equipped with a gearbox and is powered by a corded drill.

Can I use my cordless drill?

Cordless drills are recommended for emergency descent only.

What kind of drill works the best for the PowerMast?

We recommend 8-9 amp, corded, 0.5 in. drills with a keyed chuck and an RPM of 2500-3500. These higher amperage drills are typically hammer drills, which are readily available at local hardware stores. However, do not use the hammer mode when when drilling on a PowerMast, as it may cause premature wear to the system.

Can the drills on a twin system be operated by one person?

No. Each climbing unit must be operated independently.

What are the safety features of the PowerMast system?

Each climbing unit is equipped with a lock lever and overspeed brake.

Do you provide training?

We have training materials and support available: just call 888-600-6160.

What happens if the gearbox fails?

The PowerMast is equipped with an overspeed brake, which stops descent in case of system overspeed. In addition, PowerMast has a lock lever, which is a safety mechanism that stops the downward travel of the system when released.

How long does the gearbox last?

The life of the gearbox depends on usage and maintenance. With proper upkeep, we’ve seen gearboxes last longer than 10 years without any significant maintenance. All components like bearings and gears are easy to replace as needed, allowing the gearbox to be used for the life of the product.

If I unintentionally overload the PowerMast and attempt to go up, will I damage anything in the gearbox?

No. Each gearbox is equipped with an overload clutch, designed to clutch out in overload situations. The PowerMast will not move if loaded beyond the capability of the system.

How do I get answers to questions that are not in the FAQs on this page?

Please contact us via phone at 888-600-6160, email at customer.service@reechcraft.com, or on our Contact Us website page

PowerMast Freestanding
Components + Accessories

Climbing Unit
The PowerMast climbing unit ensures safe and reliable performance thanks to features such as a gearbox with overload clutch, overspeed brake, and lock lever. Powered by a 1/2-inch drill (not included), the durable PowerTrak™ drive system has up to a 1500-pound (680 kg) load capacity and can be erected from the ground up. It also includes attachment interfaces for the platform support and single mount platform assembly.
Product Dimensions: 12.6 in. (320 mm) x 10.6 in. (269 mm) x 59 in. (1499 mm)
Shipping Dimensions: 13 in. (330 mm) x 12.5 in. (318 mm) x 60 in. (1524 mm)
Shipping Weight: 57 lbs (26 kg)
Platform Support
The PowerMast platform support features a quick-attach mount system, fastening to the climbing unit with four quick-locking pins. It is adjustable from 20-33 inches (508-838 mm) to accommodate most platform and rail systems.
Product Dimensions: 38 in. (965 mm) x 7 in. (178 mm) x 8 in. (203 mm)
Shipping Dimensions: 40 in. (1016 mm) x 10 in. (254 mm) x 10 in. (254 mm)
Shipping Weight: 29 lbs (13 kg)
Side Mount T-bracket
The PowerMast side mount t-bracket features a quick-attach mount system, fastening to the platform support with two quick-locking pins. It allows the climbing unit to be mounted on the end of a platform, freeing up space on the sides of the platform for more wall access. This bracket accommodates most platform and rail systems.
Product Dimensions: 33 in. (838 mm) x 7 in. (178 mm) x 13.5 in. (343 mm)
Shipping Dimensions: 36 in. (914 mm) x 7 in. (178 mm) x 7 in. (178 mm)
Shipping Weight: 25 lbs (11 kg)
Single Mount Platform Assembly
The single mount platform assembly attaches to the PowerMast climbing unit and allows the attachment of platforms from manufacturers other than ReechCraft. It features a rigid aluminum construction and easy assembly thanks to its quick-attach design.
Product Dimensions: 9 in. (229 mm) x 2.8 in. (70 mm) x 48 in. (1219 mm)
Shipping Dimensions: 9.5 in. (241 mm) x 6 in. (152 mm) x 48.5 in. (1232 mm)
Shipping Weight: 25 lbs (11 kg)
5 ft (1.52 m) Mast
The PowerMast features a quick, tools-free connection to ensure efficiency and safety while stacking masts. Each high-strength, aluminum alloy mast includes an automatic over-top stop and a redundant locking feature that requires each mast connection to be locked in place before raising the climbing unit.
Product Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 60 in. (1524 mm)
Shipping Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 60 in. (1524 mm)
Shipping Weight: 35 lbs (16 kg)
32 in. (813 mm) Mast
The PowerMast features a quick, tools-free connection to ensure efficiency and safety while stacking masts. Each high-strength, aluminum alloy mast includes an automatic over-top stop and a redundant locking feature that requires each mast connection to be locked in place before raising the climbing unit.
Product Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 32 in. (813 mm)
Shipping Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 32 in. (813 mm)
Shipping Weight: 21 lbs (10 kg)
Freestanding Base
The PowerMast freestanding base allows three mast sections to be mounted as a rigid column, providing added stability without the need of wall support. This base features adjustable outriggers for easy positioning and is portable and useful in many situations.
Product Dimensions: 106 in. (2692 mm) x 80 in. (2032 mm) x 14.25 in. (362 mm)
Shipping Dimensions: 101 in. (2565 mm) x 75 in. (1905 mm) x 15 in. (381 mm)
Shipping Weight: 267 lbs (121 kg)
PowerMast Freestanding Tri-Mast Tie
Freestanding Tri-Mast Tie
The PowerMast freestanding tri-mast tie holds three masts together for rigid support between mast sections when used in conjunction with the freestanding base.
Product Dimensions: 20.5 in. (521 mm) x 4 in. (102 mm) x 9.5 in. (241 mm)
Shipping Dimensions: 21 in. (533 mm) x 4 in. (102 mm) x 10 in. (254 mm)
Shipping Weight: 12 lbs (5 kg
Single Person Platform
The highly portable single person platform features a quick-attach design and can be used with the standard or freestanding PowerMast configuration. The platform fits one person, weighs just 35 pounds (16 kg), and can be entered from either side.
Product Dimensions: 36 in. (914 mm) x 26 in. (660 mm) x 42 in. (1067 mm)
Shipping Dimensions: 42 in. (1067 mm) x 38 in. (965 mm) x 47 in. (1194 mm)
Shipping Weight: 60 lbs (27 kg)

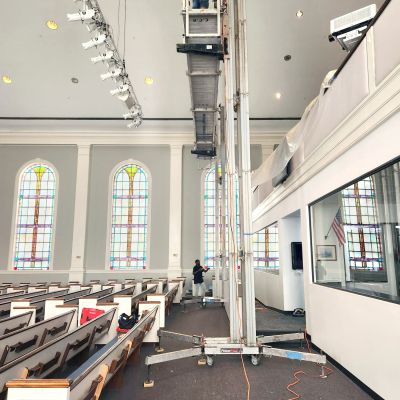

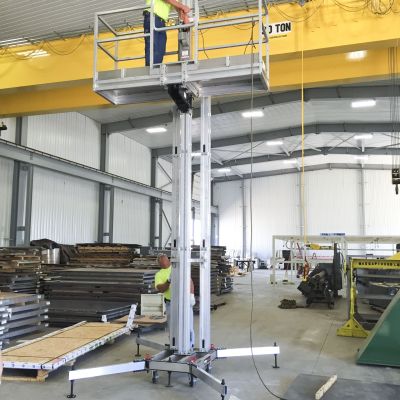

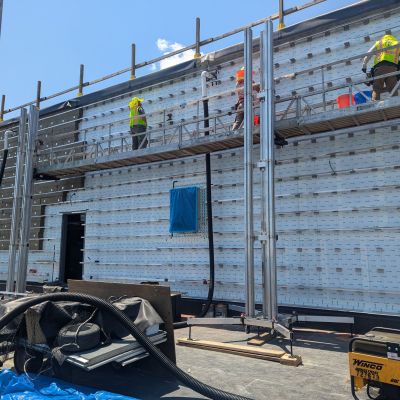

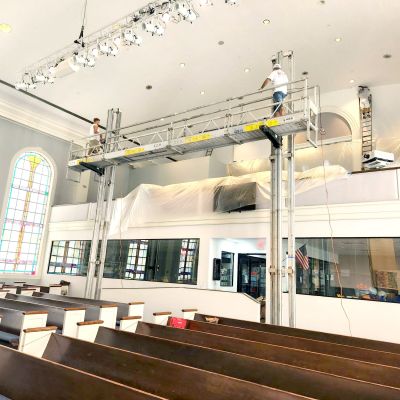

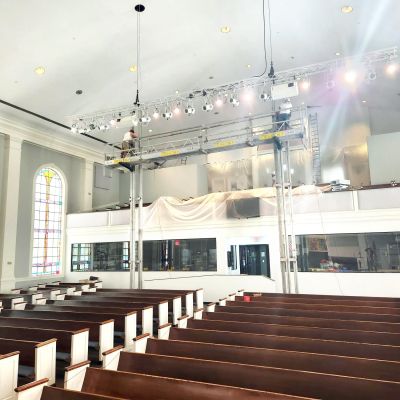

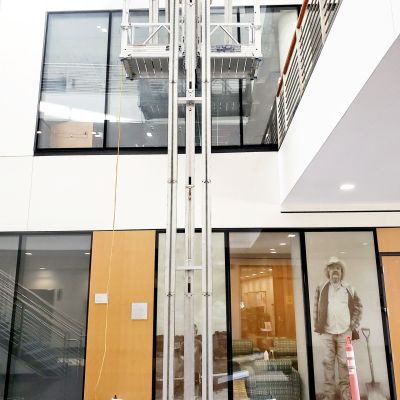

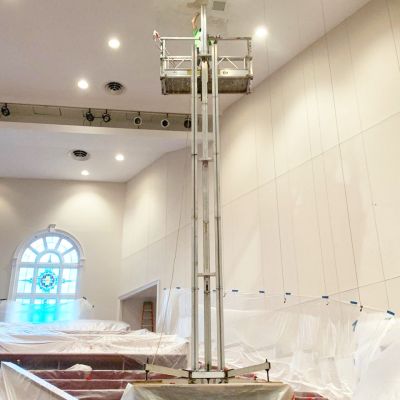

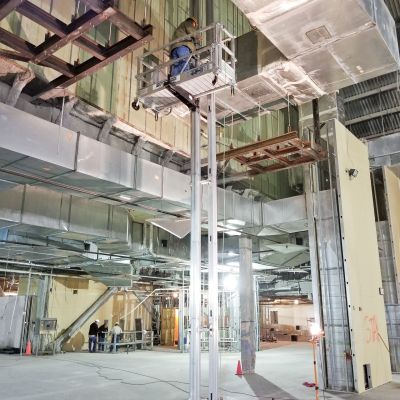

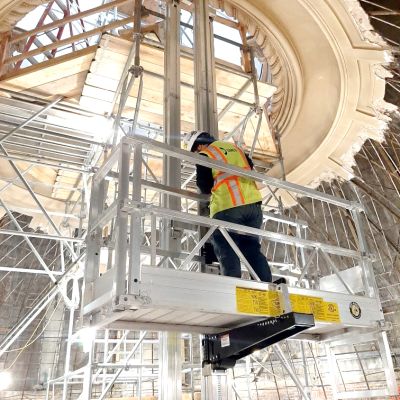

PowerMast Freestanding Applications

Manuals & Literature
Product Manuals & Literature are available below both online and in downloadable PDF format.
PowerMast Freestanding Literature

PowerMast Freestanding System literature is available for download.

Download PDF
PowerMast Operator’s Safety Manual

PowerMast Operator’s Safety Manual is available for download.

Download PDF
