PowerMast Wall-tied System
Our wall-tied system offers stable access at the range and scale of traditional scaffolds, but with the quick ascent ability of mast climbers.
Quick Ascent
With climbing speeds of 20-40 FPM and tools-free mast assembly, the PowerMast can access heights up to 200 feet (60.96 m) quickly and easily.
Easy Transport
A 100-foot (30.48 m) twin PowerMast system collapses small enough to fit in the back of a van or truck, ensuring unmatched portability.
Reach Tight Spaces
ReechCraft offers custom baskets as small as 36 x 26 inches, and the compact base plate ensures stable access with a small footprint.
Rise Above the Competition
Efficient
1
- 20-40 FPM mast climbing speed
- Height adjustable while in use
- Up to 1,500 lb (680 kg) weight capacity
- Custom configurations available for unique applications
Fast Setup, Fast Access
1
- Set up in as little as 15 minutes
- Erected from ground up, unlike swing stage
- Powered by 1/2 in. 8 amp electric drill
Easy Transport
1
- Easily fits in back of truck or van
- Compact and stable base plate
- Stackable aluminum mastsections
PowerMast Specifications
Description | Specification |
|---|---|
| Platform Support Dimensions (Twin) | Up to 30 in. (762 mm) Wide Platform Deck |
| Minimum/Maximum Platform Length (Twin) | Any within 1500 lb (680 kg) System Capacity |
| Platform Dimensions (Single) | 30 in. (762 mm) x 6.5 ft (1.98 m) |
| Maximum Height | 200 ft (60.96 m) |
| Maximum Load Capacity (Twin) | 1500 lb (680 kg) (750 lb per Mast) |
| Tie Spacing | 15 ft (4.57 m) |
| Maximum Climbing Speed | 25 ft/min (7.6 m/min) |
| Drive System | 120:1 Clutch Protected Transmission |
| Operating System | 0.5 in. (13 mm) 8 amp Minimum Drill Motor |
| Required Voltage | 110 VAC Single Phase |
| Safety Devices | Lock Lever, Overload Clutch, Overspeed Brake |
| Climbing Unit Weight | 65 lbs (29 kg) |
| 32 in. (813 mm) Mast Weight | 19 lbs (9 kg) |
| 5 ft (1.52 m) Mast Weight | 32 lbs (15 kg) |
| Tie Weight | 7 lbs (3 kg) |
| Tie Pullout Force | 750 lbs (340 kg) per Tie |
| Mast Section | 5 in. (127 mm) x 6 in. (152 mm) Aluminum with Galvanized Steel Track |
| Mast Connection Type | Interference Locking Cam |
| Base Plate Dimension | 10 in. (254 mm) x 10 in. (254 mm) Steel/Rubber |
| Total Weight on Base Plate | 2150 lbs (975 kg) |
| Surface Area of Base Plate | 100 sq. in. (645 sq. cm) |
| Surface Pressure from Base Plate | 21.5 lbs/sq. in. (1.5 kg/sq. cm) |
Note: Specifications subject to change without notice.
Mechanics That Make Sense
ReechCraft PowerMast includes a wide variety of components and accessories that provide added benefits based on what each user needs. The variation of PowerMast accessories and components helps it adapt to any project.
Climbing Unit
The climbing unit features a lock lever, an overspeed brake to automatically stop the platform in the event of overspeed, and a gearbox with an overload clutch. It is also drill operated.
Adjustable Tie
The adjustable tie provides a wide variety of attachment options for the PowerMast system and allows the PowerMast to adapt quickly to various wall types.
Platform Support
Fastening to the climbing unit with four quick-locking pins, the adjustable platform support accommodates most platforms and rail systems.
Base Foot
The base foot uses the same quick connection as the masts, can be anchored to the ground, and provides a bottom stop for the climbing unit.
Frequently Asked Questions
The lifting capacity for each PowerMast climbing unit is 750 lbs per single mast or 1,500 lbs per twin system.
The maximum height of the wall-tied PowerMast is 200 feet, and the freestanding system is 80 feet.
PowerMast is designed to accept most modular platforms and walkboards that are commonly in use.
Because we utilize less costly and easily replaceable drill motors for power, each climbing unit must be operated independently. However, since there are generally at least two workers on a twin system who can operate both ends at the same time, synchronization is rarely an issue.
When the combined weight of the platform, people, and materials weighs 1,500 lbs or less, the maximum space can be as wide as the plank in use.
From start to finish with two people, setup time ranges between 30 minutes up to 2 hours, depending on the configuration. This includes carrying, loading, and erecting the system components.

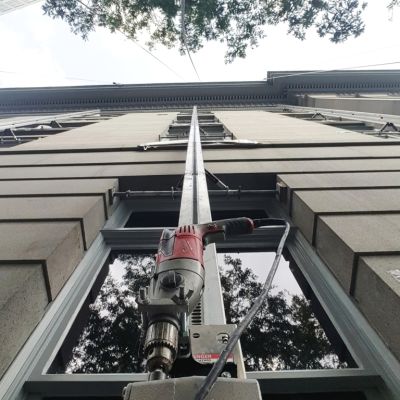

The PowerMast is equipped with a gearbox and is powered by a corded drill.
Cordless drills are recommended for emergency descent only.
We recommend 8-9 amp, corded, 0.5 in. drills with a keyed chuck and an RPM of 2500-3500. These higher amperage drills are typically hammer drills, which are readily available at local hardware stores. However, do not use the hammer mode when when drilling on a PowerMast, as it may cause premature wear to the system.
No. Each climbing unit must be operated independently.
Each climbing unit is equipped with a lock lever and overspeed brake.
We have training materials and support available: just call 888-600-6160.
The PowerMast is equipped with an overspeed brake, which stops descent in case of system overspeed. In addition, PowerMast has a lock lever, which is a safety mechanism that stops the downward travel of the system when released.
The life of the gearbox depends on usage and maintenance. With proper upkeep, we’ve seen gearboxes last longer than 10 years without any significant maintenance. All components like bearings and gears are easy to replace as needed, allowing the gearbox to be used for the life of the product.
No. Each gearbox is equipped with an overload clutch, designed to clutch out in overload situations. The PowerMast will not move if loaded beyond the capability of the system.
Please contact us via phone at 888-600-6160, email at customer.service@reechcraft.com, or on our Contact Us website page
PowerMast Wall-Tied
Components + Accessories
The PowerMast climbing unit ensures safe and reliable performance thanks to features such as a gearbox with overload clutch, overspeed brake, and lock lever. Powered by a 1/2-inch drill (not included), the durable PowerTrak™ drive system has up to a 1500-pound (680 kg) load capacity and can be erected from the ground up. It also includes attachment interfaces for the platform support and single mount platform assembly.
Product Dimensions: 12.6 in. (320 mm) x 10.6 in. (269 mm) x 59 in. (1499 mm)
Shipping Dimensions: 13 in. (330 mm) x 12.5 in. (318 mm) x 60 in. (1524 mm)
Shipping Weight: 57 lbs (26 kg)
The PowerMast platform support features a quick-attach mount system, fastening to the climbing unit with four quick-locking pins. It is adjustable from 20-33 inches (508-838 mm) to accommodate most platform and rail systems.
Product Dimensions: 38 in. (965 mm) x 7 in. (178 mm) x 8 in. (203 mm)
Shipping Dimensions: 40 in. (1016 mm) x 10 in. (254 mm) x 10 in. (254 mm)
Shipping Weight: 29 lbs (13 kg)
The PowerMast side mount t-bracket features a quick-attach mount system, fastening to the platform support with two quick-locking pins. It allows the climbing unit to be mounted on the end of a platform, freeing up space on the sides of the platform for more wall access. This bracket accommodates most platform and rail systems.
Product Dimensions: 33 in. (838 mm) x 7 in. (178 mm) x 13.5 in. (343 mm)
Shipping Dimensions: 36 in. (914 mm) x 7 in. (178 mm) x 7 in. (178 mm)
Shipping Weight: 25 lbs (11 kg)
The single mount platform assembly attaches to the PowerMast climbing unit and allows the attachment of platforms from manufacturers other than ReechCraft. It features a rigid aluminum construction and easy assembly thanks to its quick-attach design.
Product Dimensions: 9 in. (229 mm) x 2.8 in. (70 mm) x 48 in. (1219 mm)
Shipping Dimensions: 9.5 in. (241 mm) x 6 in. (152 mm) x 48.5 in. (1232 mm)
Shipping Weight: 25 lbs (11 kg)
The PowerMast features a quick, tools-free connection to ensure efficiency and safety while stacking masts. Each high-strength, aluminum alloy mast includes an automatic over-top stop and a redundant locking feature that requires each mast connection to be locked in place before raising the climbing unit.
Product Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 60 in. (1524 mm)
Shipping Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 60 in. (1524 mm)
Shipping Weight: 35 lbs (16 kg)
The PowerMast features a quick, tools-free connection to ensure efficiency and safety while stacking masts. Each high-strength, aluminum alloy mast includes an automatic over-top stop and a redundant locking feature that requires each mast connection to be locked in place before raising the climbing unit.
Product Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 32 in. (813 mm)
Shipping Dimensions: 6 in. (152 mm) x 5 in. (127 mm) x 32 in. (813 mm)
Shipping Weight: 21 lbs (10 kg)

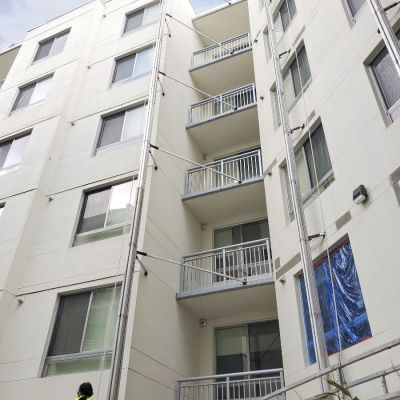

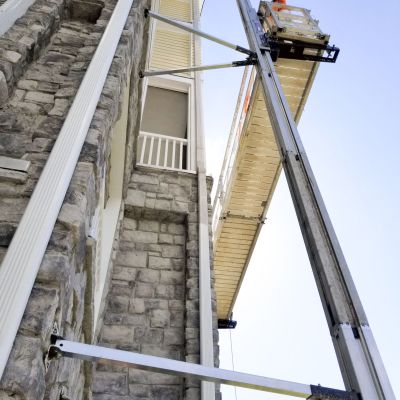

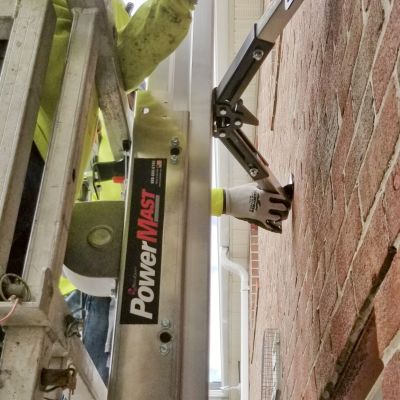

The PowerMast adjustable tie provides a wide variety of attachment options for the PowerMast system. Bring the mast 6 to 16 inches (152-406 mm) away from the wall with this bracket, or purchase extra extension tubes to extend even further. The adjustable tie folds in half for easy storage.
Product Dimensions: 24 in. (610 mm) x 6 in. (152 mm) x 6 in. (152 mm)
Shipping Dimensions: 17 in. (432 mm) x 6 in. (152 mm) x 6.5 in. (165 mm)
Adjustment: 6-16 in. (152-406 mm)
Shipping Weight: 8 lbs (4 kg)
The PowerMast tie extensions replace the standard tubes on the adjustable tie (4026377) to mount further from the wall for large wall obstructions or offsets. Three sizes of tie extensions are available to meet your project needs.
Product Dimensions: 24 in. (610 mm) x 4 in. (102 mm) x 6 in. (152 mm)
Shipping Dimensions: 26 in. (660 mm) x 6.5 in. (165 mm) x 6 in. (152 mm)
Adjustment: 12-29 in. (305-737 mm)
Shipping Weight: 5 lbs (2 kg)
The PowerMast tie extensions replace the standard tubes on the adjustable tie (4026377) to mount further from the wall for large wall obstructions or offsets. Three sizes of tie extensions are available to meet your project needs.
Product Dimensions: 39 in. (991 mm) x 4 in. (102 mm) x 6 in. (152 mm)
Shipping Dimensions: 44 in. (1118 mm) x 7.75 in. (197 mm) x 6 in. (152 mm)
Adjustment: 18-42 in. (457-1067 mm)
Shipping Weight: 5.5 lbs (2 kg)
The PowerMast tie extensions replace the standard tubes on the adjustable tie (4026377) to mount further from the wall for large wall obstructions or offsets. Three sizes of tie extensions are available to meet your project needs.
Product Dimensions: 53 in. (1346 mm) x 4 in. (102 mm) x 6 in. (152 mm)
Shipping Dimensions: 73 in. (1854 mm) x 7.3 in. (185 mm) x 3.2 in. (81 mm)
Adjustment: 24-55 in. (610-1397 mm)
Shipping Weight: 5.75 lbs (3 kg)
The PowerMast base foot uses the same tools-free quick connection as the masts and provides stable footing for the masts. This base features a heavy-duty rubber backing and can be anchored to the ground surface.
Product Dimensions: 10 in. (254 mm) x 10 in. (254 mm) x 5.5 in. (140 mm)
Shipping Dimensions: 11 in. (279 mm) x 11 in. (279 mm) x 4 in. (102 mm)
Shipping Weight: 10 lbs (4 kg)
The highly portable single person platform features a quick-attach design and can be used with the standard or freestanding PowerMast configuration. The platform fits one person, weighs just 35 pounds (16 kg), and can be entered from either side.
Product Dimensions: 36 in. (914 mm) x 26 in. (660 mm) x 42 in. (1067 mm)
Shipping Dimensions: 42 in. (1067 mm) x 38 in. (965 mm) x 47 in. (1194 mm)
Shipping Weight: 60 lbs (27 kg)

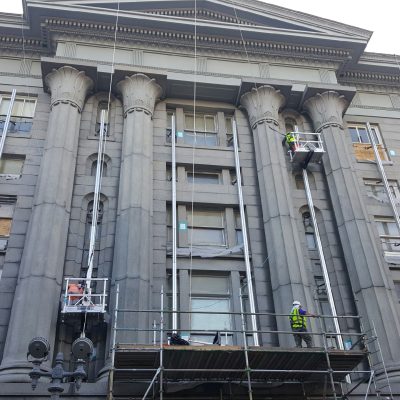

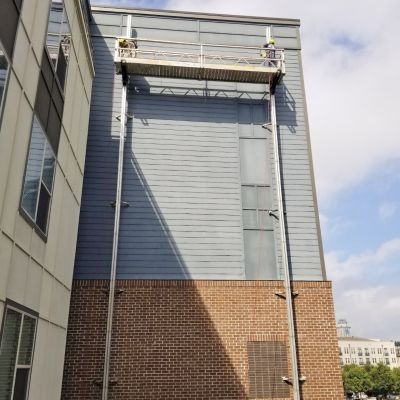

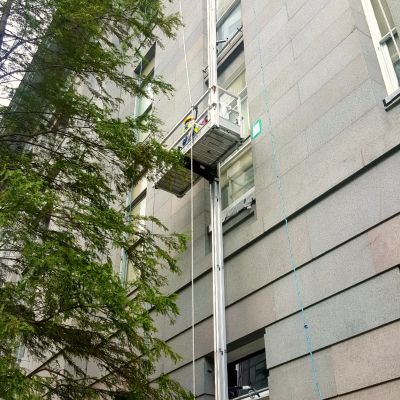

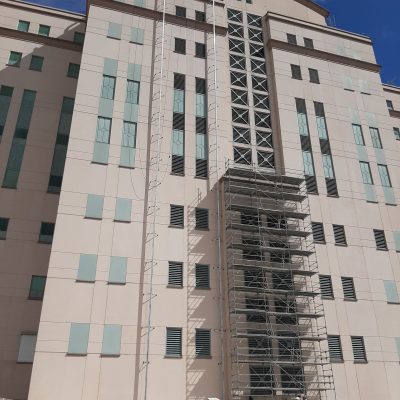

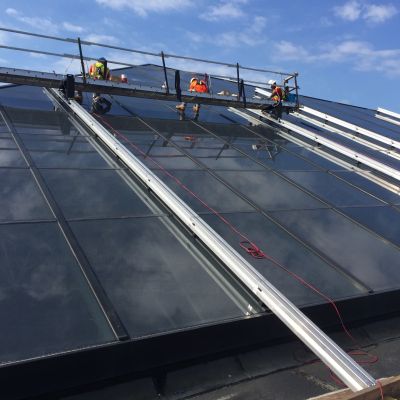

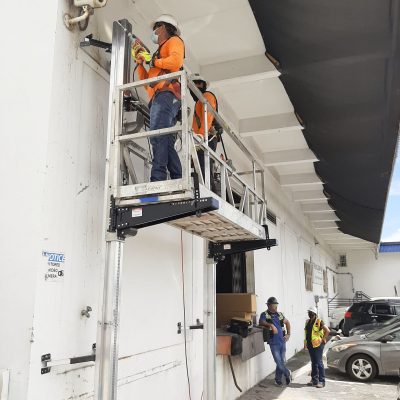

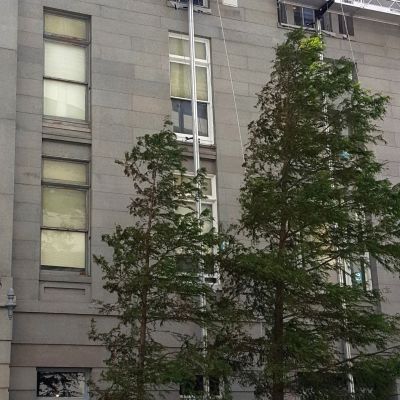

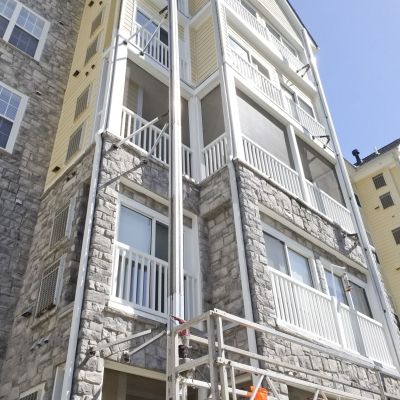

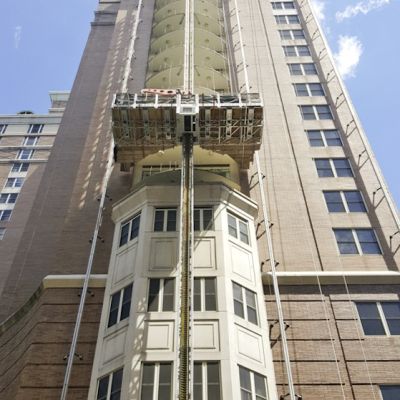

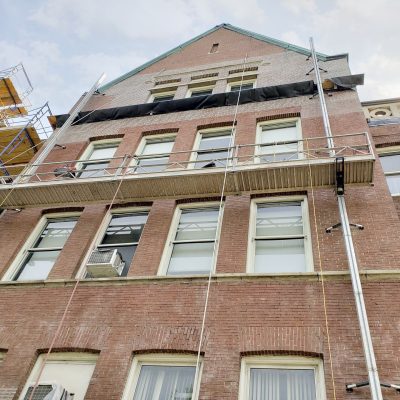

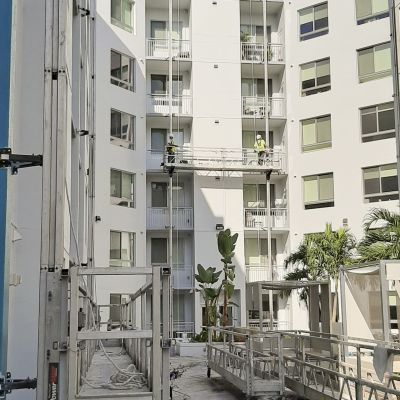

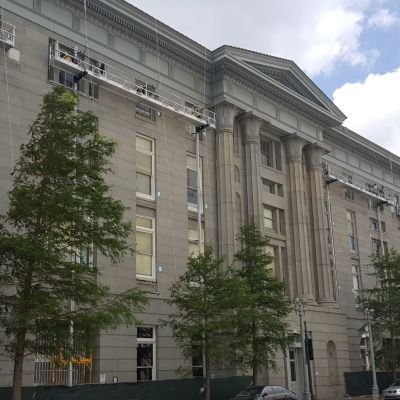

PowerMast Wall-Tied Applications
Manuals & Literature
Product Manuals & Literature are available below both online and in downloadable PDF format.
PowerMast Wall-tied System literature is available for download.
PowerMast Operator’s Safety Manual is available for download.
