PowerPole Climb Faster, Work Safer
With low setup costs, high portability, and a landscape-friendly design, PowerPole works at the ideal height to reach tight spots.
Streamlined
PowerPole is three times faster than traditional pole systems and can be set up without the need for roof access. The quick attach poles feature tools-free couplers for fast assembly.
Safe and Stable
PowerPole’s drill-powered design prevents pump injuries, while the rugged steel stabilizers of the outrigger base provide stability. Midrail posts keep the walkboard secure.
Flexible for You
The landscape-friendly PowerPole is ideal for residential settings. It can be used without wall ties up to 24 feet (7.32 m), and a single person platform is available for quick access in tight spaces.
Flexible for What You Need
Our 6- and 12-foot (1.83 m and 3.66 m) pole sections allow you to mix and match to reach the specific height you need.
24 ft Work Height
The PowerPole system with outrigger base and v-brace tie provides 24 ft work height without anchoring the tie to the wall.
32 ft Work Height
Once anchored to the structure at 32 ft, the PowerPole system can be used without midspan ties (Note: This requires alternative access to anchor the tie and secure to the mast).
40 ft Work Height
Once anchored to the structure at 40 ft using the outrigger base and v-brace, the PowerPole system can be used without midspan ties (Note: This requires alternative access to anchor the tie and secure to the mast).
75 ft Work Height
The PowerPole system can be used to a maximum work height of 75 ft. This requires midspan ties every 16 ft and one at the top (Note: midspan ties are temporarily disconnected to pass).
PowerPole Specifications
Description | Specification |
|---|---|
| Maximum Rated Load on Climbing Unit [Work Platform Weight Not Included] | 650 lbs (295 kg) |
| Safety Devices | Lock Pawl |
| Emergency Lowering | Manual Descent Crank (Optional) |
| Maximum Climbing Speed | Maximum Climbing Speed |
| Maximum Platform Height | 69 ft (21.03 m) |
| Maximum Work Height | 75 ft (22.86 m) |
| Platform Sizes | 0Up to 40 ft (12.19 m) x 28 in. (711 mm) |
| Single Person Platform Size | 226 in. (660 mm) x 36 in. (914 mm) x 42 in. (1067 mm) |
| Maximum Midspan Tie Spacing | 16 ft (4.88 m) |
| Maximum Untied Work Height | (Requires Outriggers) – 24 ft (7.32 m) |
| Maximum Height without Midspan Tie | (with Outriggers) – 40 ft (12.19 m) |
*Based on 6 ft (2m) above platform height.
Note: Specifications subject to change without notice.

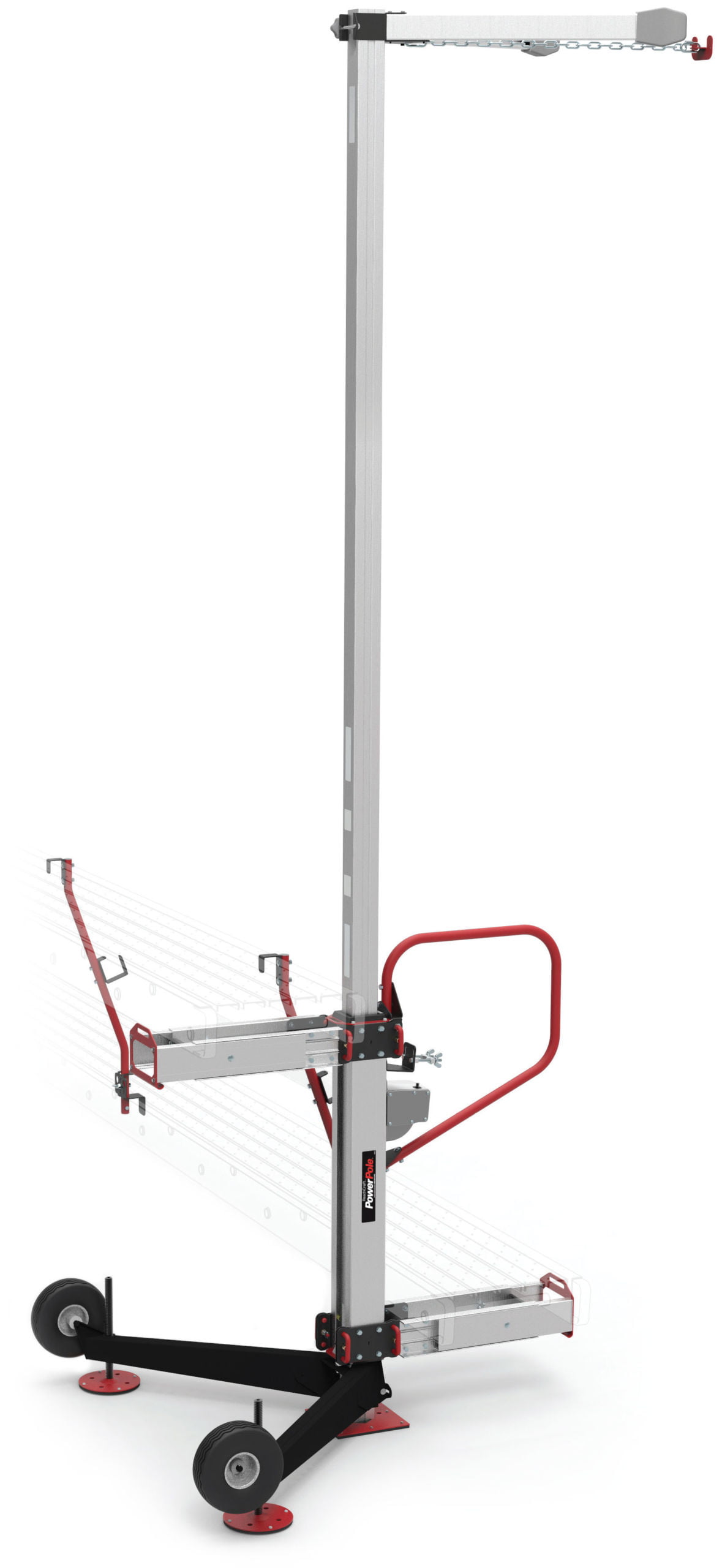

Mechanics That Make Sense
With the ReechCraft PowerPole, traditional scaffolding and pump jack systems are a thing of the past. Our streamlined design gains you access between buildings, on rooftops, around landscaping, and more. The PowerPole is perfect for contract work on residential areas.
Efficient Single Platform
The single-person platform provides ample space for you and your tools. The platform quickly attaches to the climbing unit via the PowerLatch.
Automatic Overspeed Brake
The gearbox includes an integrated overspeed brake. This provides safety redundancy by automatically stopping the platform in the event of overspeed.
Drill-Powered Climbing Unit
Powered by a 1/2-inch drill, the PowerTrak™ system has a 650-pound (295 kg) load rating and is three times the speed of a pump jack system. Our gearbox eliminates typical electrical components, ensures portability, and features an overspeed brake for added safety.
Tools-Free Poles + Couplers

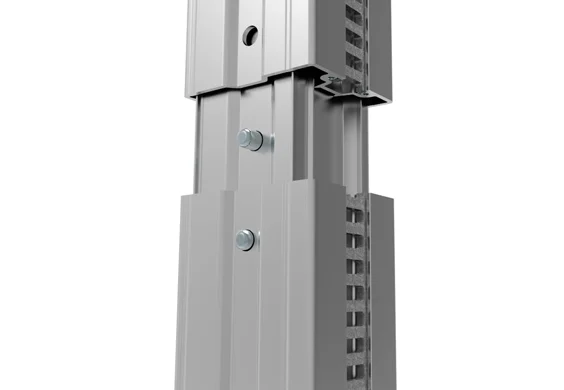

Updated, streamlined, extruded aluminum poles are easy to haul and install. The tools-free coupler allows for quick assembly. The pole’s contoured profile assists with grip, both during assembly and when tilting the system into place.
Frequently Asked Questions
The lifting capacity for the PowerPole system is 650 pounds (295 kg) per climbing unit, or 1,300 pounds (590 kg) for a twin configuration.
The outrigger stabilizers are positioned approximately 5 feet (1.5 m) from the wall, causing the system to lean toward the building and ensuring the majority of its weight rests on the base plate when in use. The outriggers are located beyond the system’s center of gravity and spread 4 feet (1.2 m) apart to provide exceptional stability that is far superior than a ladder.
The PowerPole can be used at a working height of up to 75 feet (22.86 m). If this height must be accessed often, consider using the PowerMast, which allows equipment to be built from the ground up and can pass wall ties without removing them.
There must be ladder access at all times, per OSHA requirements. We recommend also having a spare cordless drill on the platform with you. Extension cords should have locking prongs or be secured so that they cannot become unplugged. Be sure to use a surge protector with a lower amperage reset than the breaker in the panel.
PowerPole follows all relevant OSHA safety codes. The following are all applicable OSHA and ANSI codes for PowerPole: OSHA CFR 1926 Subpart L, Section 1926.451 – Scaffolds; OSHA CFR 1926 Subpart L, Section 1926.452, Paragraph (j); OSHA CFR 1926 Subpart M – Fall Protection; ANSI A10.8, A10.32.
In Canada, there is no specific consensus standard written for pole systems like the PowerPole. Therefore, CSA approval is not required or applicable. Rather, there is occasional mention of mostly generalized information written by Occupational Health and Safety (OH&S) (similar to OSHA in the US). If the PowerPole system is used in accordance with the product safety and installation instructions, along with attention to specific national, regional, and local regulations, then the PowerPole system will meet or exceed the necessary requirements for those regulations.
The PowerPole utilizes our exclusive PowerTrak system, which is powered by a gearbox and standard corded drill. This makes it easy to operate without adding the excessive weight of a motor or needing specialized power sources. In addition, the gearbox components are easy to service and replace, lowering maintenance requirements and costs in the long run.
PowerPole Components + Accessories

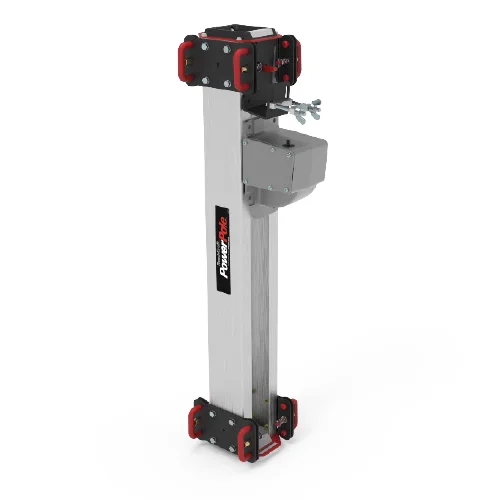

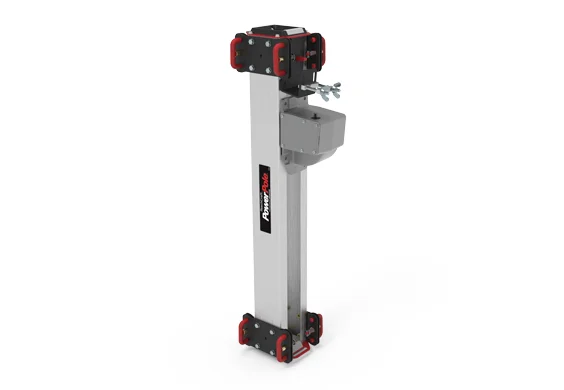

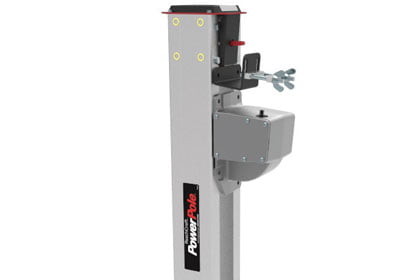

The lightweight, efficient PowerPole climbing unit enables the climbing capabilities of the PowerPole system. Powered by a 1/2-inch drill, the durable PowerTrak™ drive system has a 650-pound (295 kg) load rating and offers extreme performance in a compact package, providing all the capacity needed to lift workers, tools, and materials into position. Each climbing unit is equipped with a gearbox to power the unit and a drill brace to secure the drill. The system also includes the PowerLatch™ quick latch system to reconfigure the PowerPole for a variety of jobs. The PowerPole gearbox includes a safety locking lever and an integrated overspeed brake for added safety.
Product Dimensions: 14.3 in. (362 mm) x 9.5 in. (241 mm) x 44 in. (1118 mm)
Shipping Dimensions: 18 in. (457 mm) x 10 in. (254 mm) x 53 in. (1346 mm)
Shipping Weight: 49 lbs (22 kg)

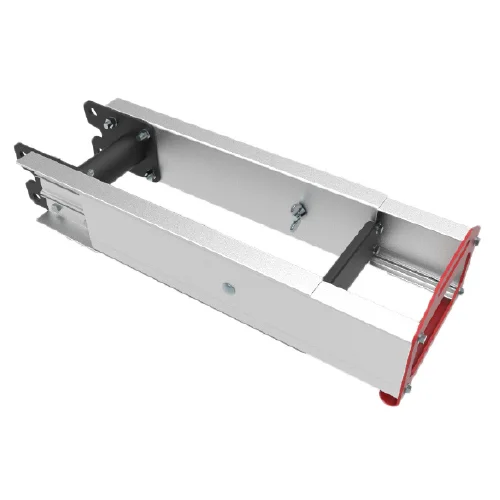

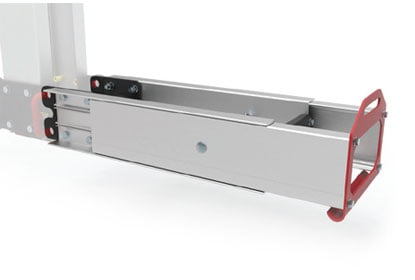

The platform support is used for dual mast configurations and is installed with the PowerLatch connector. With 16 inches (279 mm) of adjustment, the platform support is easily used with the PowerLatch assembly to accommodate a wide range of standard work platforms from 12 to 28 inches (305-711 mm). A universal platform tie chain is included.
Product Dimensions: 12-28 in. (305-711 mm) x 8.5 in. (216 mm) x 6.5 in. (165 mm)
Shipping Dimensions: 21 in. (533 mm) x 10 in. (254 mm) x 10 in. (254 mm)
Shipping Weight: 16 lbs (7 kg)

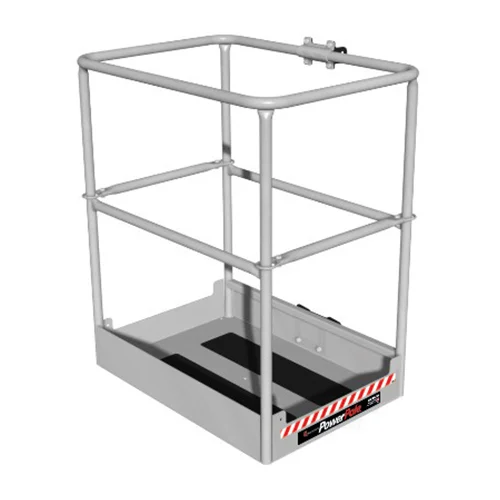

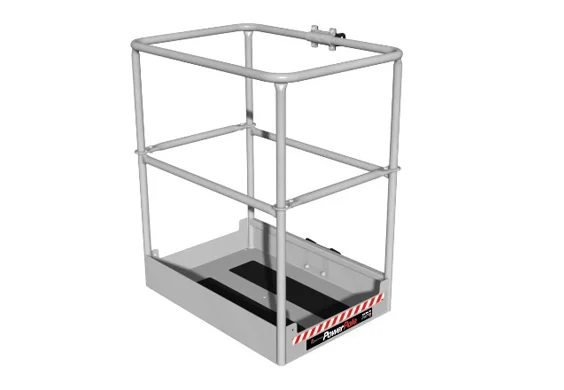

Choose the PowerPole single-person platform for fast access. When used with the PowerPole outrigger base, you can set up a single mast in a few minutes and work at heights up to 40 feet (12.19 m) with no intermediate wall ties. Other configurations allow heights up to 75 feet (22.86 m). The platform features dual side entry and a large 36-inch (914 mm) wide x 26-inch (660 mm) deep work area, providing ample working space for you, your tools, and your equipment. The platform is highly portable and quickly attaches to the climbing unit via the PowerLatch™.
Product Dimensions: 36 in. (914 mm) x 26 in. (660 mm) x 42 in. (1067 mm)
Shipping Dimensions: 42 in. (1067 mm) x 38 in. (965 mm) x 47 in. (1194 mm)
Shipping Weight: 60 lbs (27 kg)

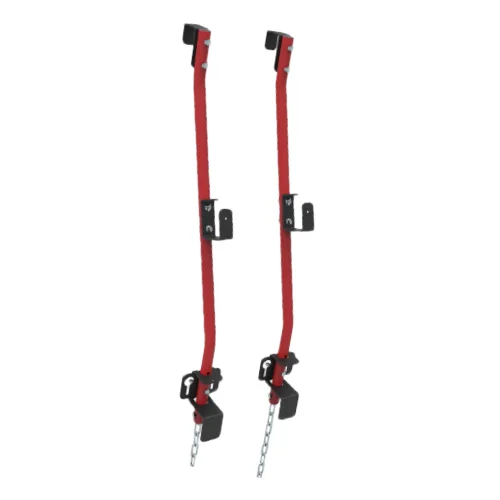

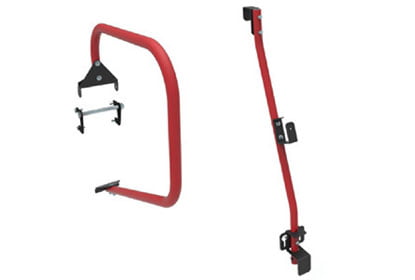

The speedrail midrail posts attach to the workbench and mount to the walkboard securely with a chain. The posts are placed 8 feet (2.44 m) apart or less. Wooden 2x4s are then mounted to the midrail post to complete the midrail and toerail. The speedrail midrail posts feature a no-tools connection and fit stages from leading manufacturers.
Product Dimensions: 9 in. (229 mm) x 5 in. (127 mm) x 42 in. (1067 mm)
Shipping Dimensions: 10 in. (254 mm) x 5.25 in. (133 mm) x 48 in. (1219 mm)
Shipping Weight: 17 lbs (8 kg)

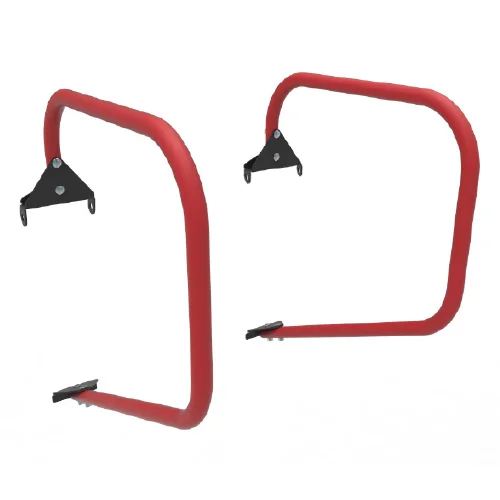

The speedrail endrails fasten to the climbing unit with the PowerLatch tool-free connection. They work with any stage in the PowerPole configuration.
Product Dimensions: 27 in. (686 mm) x 6 in. (152 mm) x 30 in. (762 mm)
Shipping Dimensions: 28.5 in. (724 mm) x 7 in. (178 mm) x 31.75 in. (806 mm)
Shipping Weight: 11 lbs (5 kg)

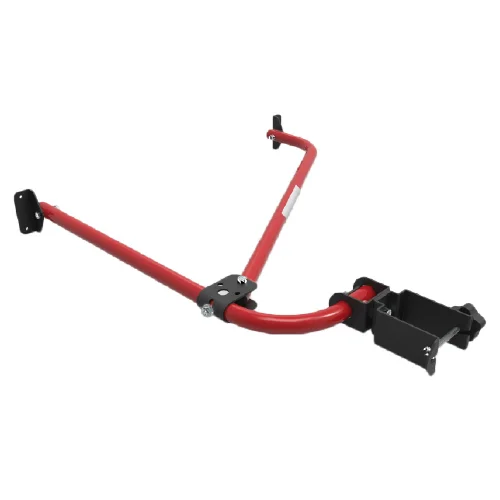

The lightweight, durable standoff tie accommodates most pitched rooflines, including valleys. It also makes a stable wall tie that will safely secure the PowerPole system to different types of buildings.
Product Dimensions: 36 in. (914 mm) x 33.5 in. (851 mm) x 4 in. (102 mm)
Shipping Dimensions: 48 in. (1219 mm) x 11.5 in. (292 mm) x 6 in. (152 mm)
Shipping Weight: 12 lbs (5 kg)

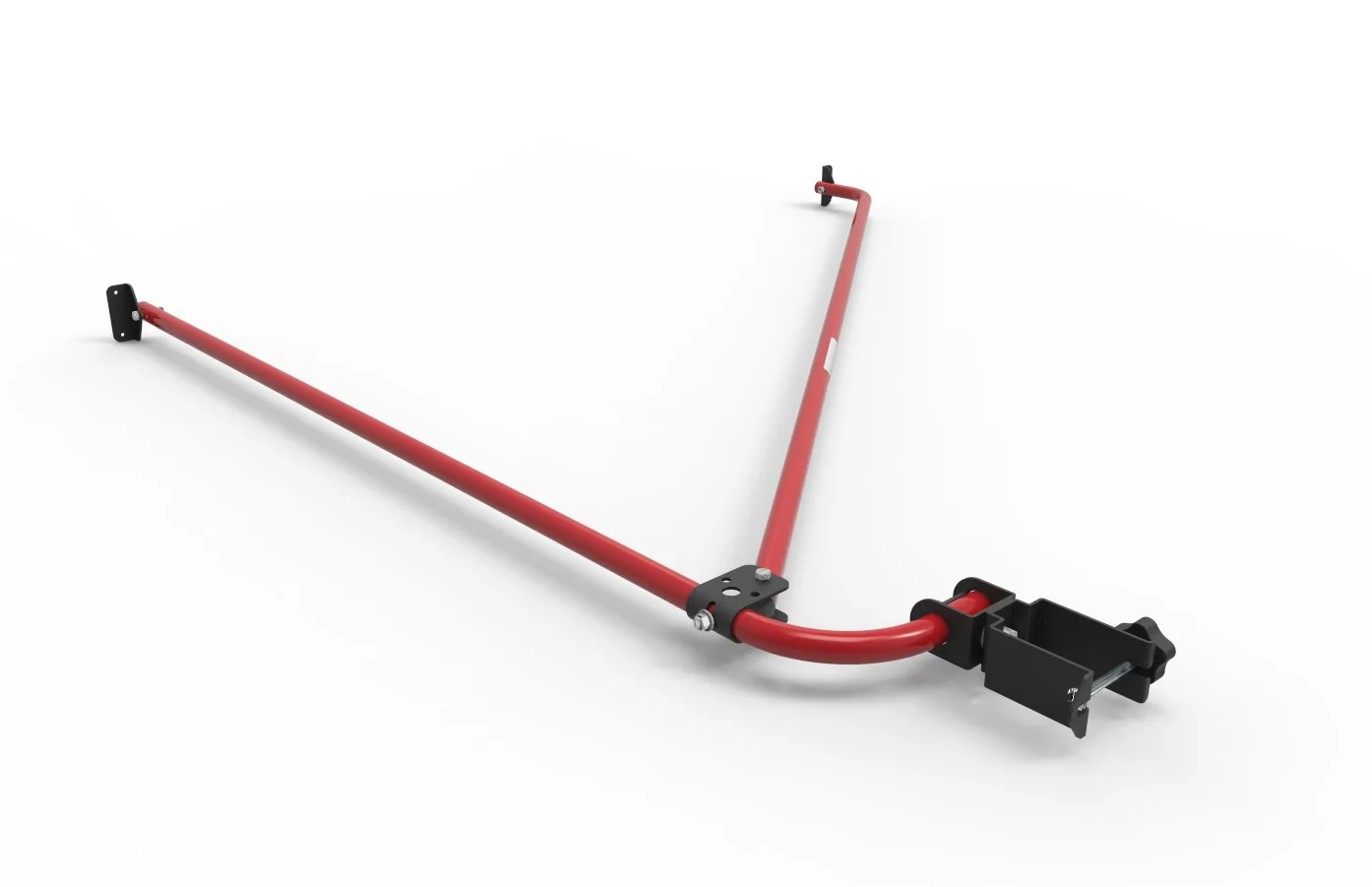

The versatile super standoff tie has extra-long tubes to allow roof access. By placing the platform at roof level, the PowerPole tilt-up system can serve as roofline fall protection.
Product Dimensions: 72 in. (1829 mm) x 73 in. (1854 mm) x 4 in. (102 mm)
Shipping Dimensions: 93 in. (2362 mm) x 10.8 in. (273 mm) x 3 in. (76 mm)
Shipping Weight: 20 lbs (9 kg)

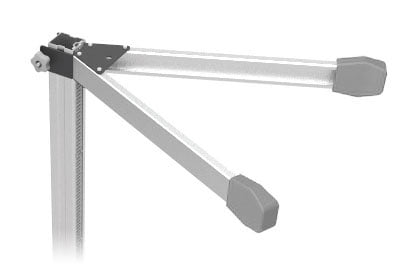

This extendable v-brace allows you to extend an additional 18 inches (457 mm) by moving in 2-inch (51 mm) increments, creating a total wall distance of 51 inches (1295 mm) when fully extended. The extendable v-brace also folds for easy storage and comes standard with a 500-pound-rated (227 kg) ratchet strap and wall anchor plate.
Product Dimensions: 36-54 in. (914-1372 mm) x 34 in. (864 mm) x 4.5 in. (114 mm)
Shipping Dimensions: 43 in. (1092 mm) x 36 in. (914 mm) x 6 in. (152 mm)
Shipping Weight: 14 lbs (6 kg)

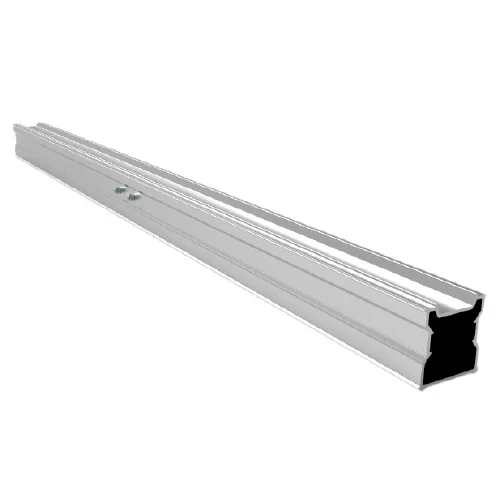

This 4-foot (1.22 m) pole coupler is made with high-strength aluminum alloy. A PowerPole setup can be constructed using any combination of 6-foot (1.83 m) and 12-foot (3.66 m) poles. Use this 4-foot (1.22 m) pole coupler to connect the mast sections using built-in snap buttons. No tools required.
Product Dimensions: 2.75 in. (70 mm) x 2.75 in. x 48 in. (1219 mm)
Shipping Dimensions: 4.5 in. (114 mm) x 4 in. (102 mm) x 48 in. (1219 mm)
Shipping Weight: 10 lbs (4 kg)

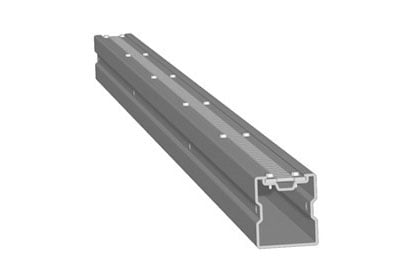

This 6-foot (1.83 m) pole section is made with high-strength aluminum alloy and features a galvanized, replaceable steel track. A PowerPole setup can be constructed using any combination of 6-foot (1.83 m) and 12-foot (3.66 m) sections. Using 6-foot (1.83 m) pole sections allows for more compact transport and storage, but increases the number of couplers required.
Product Dimensions: 3 in. (76 mm) x 3.5 in. (89 mm) x 72 in. (1829 mm)
Shipping Dimensions: 3 in. (76 mm) x 3.5 in. (89 mm) x 72 in. (1829 mm)
Shipping Weight: 18 lbs (8 kg)

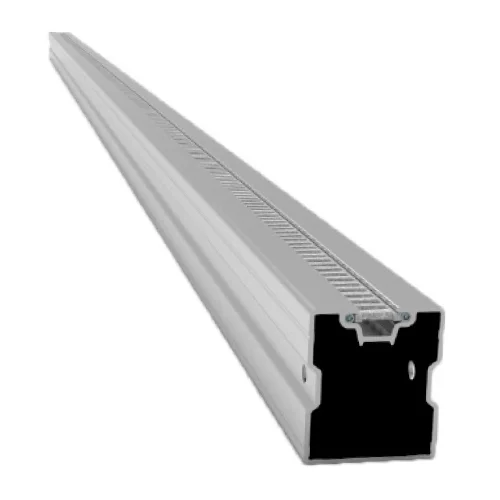

This 12-foot pole section is made with high-strength aluminum alloy and features a galvanized, replaceable steel track. A PowerPole setup can be constructed using any combination of 6-foot (1.83 m) and 12-foot (3.7 m) poles. Using 12-foot (3.66 m) pole sections will decrease the number of couplers required, creating a lighter assembly.
Product Dimensions: 3 in. (76 mm) x 3.5 in. (89 mm) x 144 in. (3658 mm)
Shipping Dimensions: 3 in. (76 mm) x 3.5 in. (89 mm) x 144 in. (3658 mm)
Shipping Weight: 35 lbs (16 kg)

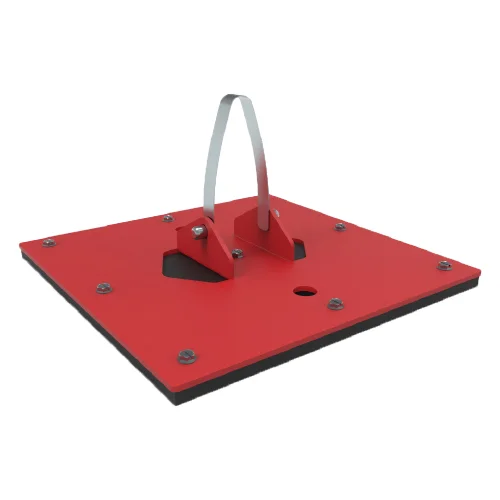

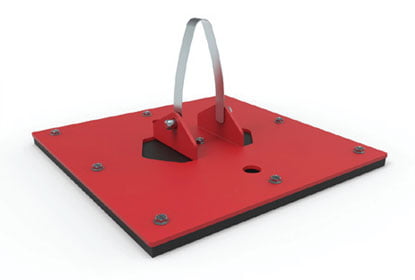

The base plate attaches to the bottom of the base mast section. The belted rubber backing is durable and provides protection and solid footing. The large area lowers the ground pressure for earthen surfaces. Each base has two holes for pinning to the ground or larger sill plate. Pinning to the ground surface may not be required if secured by alternate means. Refer to the user manual for specific setup requirements.
Product Dimensions: 10 in. (254 mm) x 10 in. (254 mm) x 2.5 in. (64 mm)
Shipping Dimensions: 10 in. (254 mm) x 10 in. (254 mm) x 2.5 in. (64 mm)
Shipping Weight: 6 lbs (3 kg)

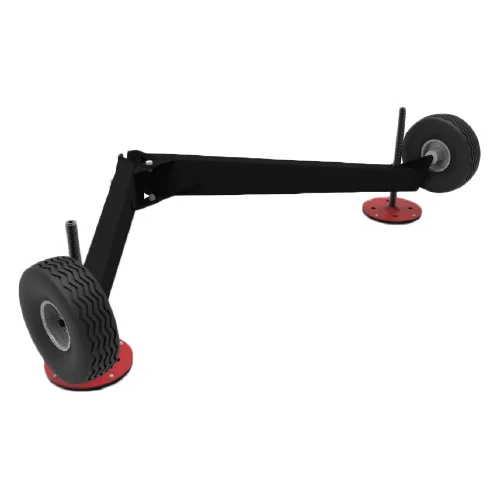

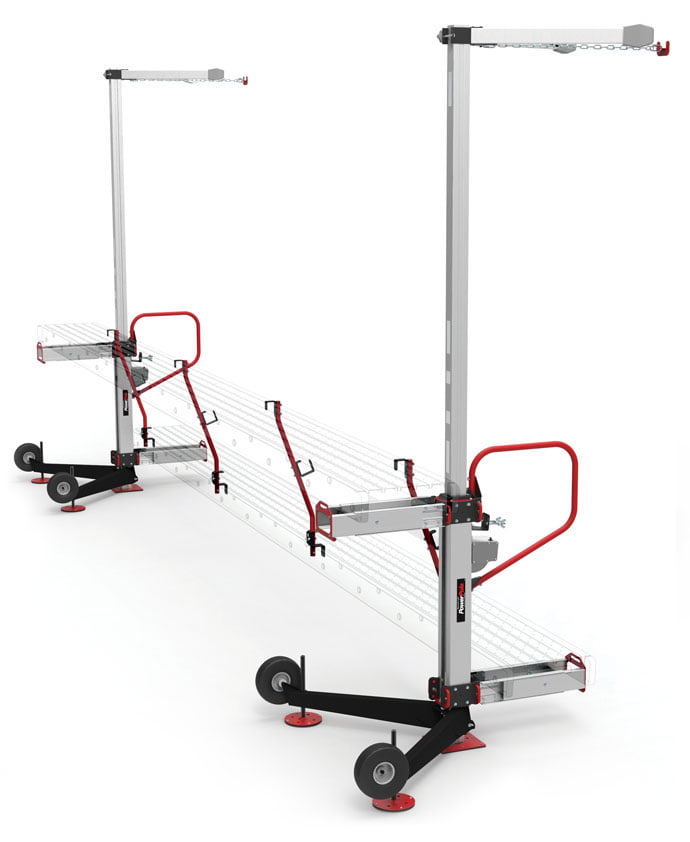

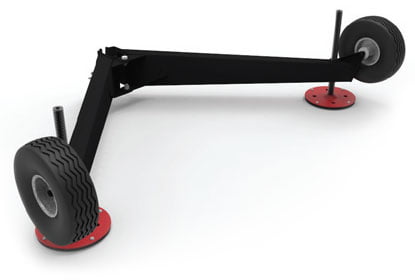

The PowerPole outrigger base makes setting up and moving around a jobsite fast and easy. The rugged steel stabilizers keep you pressed into the wall, allowing a 24-foot (7.32 m) work height without tying into the structure. Each side of the outrigger base has a stabilizer that adjusts 8 inches (203 mm) to level the system. The assembly clamps onto the mast by hand and can be removed and folded for compact transport to the next jobsite.
Product Dimensions: 58 in. (1473 mm) x 37 in. (940 mm) x 14.5 in. (368 mm)
Shipping Dimensions: 48 in. (1219 mm) x 17 in. (432 mm) x 10.5 in. (267 mm)
Shipping Weight: 56 lbs (25 kg)
